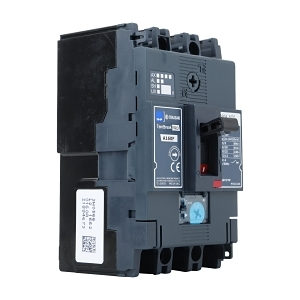

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 36kA 3P 125A Adj. Thermal Fix. Magnetic
Brand: NHP
SKU: A160F13125TF
Alternatively Known As: MCCB, Circuit Breaker, Thermal Magnetic Circuit Breaker
Technical Specifications
- Rated Current: 125 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 36 kA
- Rated Service Short Circuit Breaking Capacity: 20 kA
- Type of Protection Trip Unit: Thermal/magnetic release
- Trip Curve: Adjustable thermal, fixed magnetic
- Frame Size Rating: 160 A
- Long Time Overload Protection Adjustment Range: 80-125 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 690 V
- Rated Short Circuit Breaking Capacity: 6 kA at 690 V AC
- Rated Impulse Withstand Voltage: 8 kV
- Mechanical Life: 20000 cycles
- Electrical Life: 10000 cycles
- Cable Cross Section Range: 1.5-70 mm²
- Dimensions (H x L x W): 130mm x 95mm x 75mm
- Weight: 0.8 kg
Key Features
- Adjustable thermal and fixed magnetic trip unit for enhanced protection.
- High breaking capacity of 36 kA at 415 V.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical protection in commercial buildings
- General: Suitable for various electrical installations requiring circuit protection
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for circuit breakers.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and improving overall system performance.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 160 Frame 36kA 3P 125A is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable circuit protection.
