Home/Electrical/Switchgear/Circuit Breakers/Circuit Breakers A/C/Terasaki TemBreak PRO MCCB 160 Frame 36kA 3P 25A Adj. Thermal Fix. Magnetic

Trade Discount 25%

SKU: A160F1325TF

BRAND: NHP

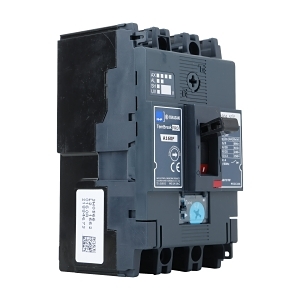

Terasaki TemBreak PRO MCCB 160 Frame 36kA 3P 25A Adj. Thermal Fix. Magnetic

$358.00 List price: $475.40

+ −

30 Days Return Delivery Options

Description
Attachments

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 36kA 3P 25A Adj. Thermal Fix. Magnetic

Brand: NHP

SKU: A160F1325TF

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 25A

Technical Specifications

Rated current: 25 A
Number of poles: 3
Max rated operation voltage: 690 V
Rated ultimate short-circuit breaking capacity: 36 kA
Rated service short-circuit breaking capacity: 20 kA
Type of protection trip unit: Thermal/magnetic release
Trip curve: Adj. thermal, fixed magnetic
Frame size rating: 160 A
Long time overload protection adjustment range: 16-25 A
Rated frequency: 50-60 Hz
Rated insulation voltage: 690 V
Rated short-circuit breaking capacity: 6 kA at 690 V AC
Rated impulse withstand voltage: 8 kV
Power loss: 13.6 W
Mechanical life: 20000 cycles
Cable cross-section range: 1.5-70 mm²
Pollution degree: 3
Rated surrounding temperature: 50 °C
Dimensions (H x L x W): 130mm x 95mm x 75mm
Weight: 0.8 kg

Key Features

Rated current: 25 A with adjustable thermal and fixed magnetic trip unit.
Ultimate short-circuit breaking capacity of 36 kA at 415 V.
Suitable for isolation and front-side connection.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical panels in commercial buildings
General: Protection of electrical circuits in various applications

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Designed for high efficiency, reducing energy loss and improving overall system performance.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 160 Frame 36kA 3P 25A is available now for immediate purchase. Ideal for industrial and commercial electrical applications.

A160F1325TF-AU-TBP-MCCB-160AF-Datasheet.pdf (A160F1325TF-AU-TBP-MCCB-160AF-Datasheet.pdf, 966 Kb) [Download]
