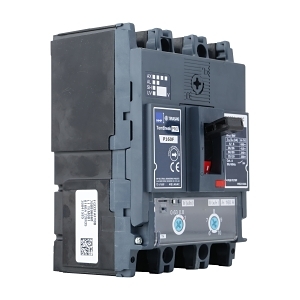

Terasaki TemBreak PRO MCCB 160 Frame 36kA 3P 32A Adj. Therm. Adj. Mag.

SKU: P160F2332TM

BRAND: NHP

Terasaki TemBreak PRO MCCB 160 Frame 36kA 3P 32A Adj. Therm. Adj. Mag.

$413.90 List price: $549.60

+ −

30 Days Return Delivery Options

Description
Attachments

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 36kA 3P 32A Adj. Therm. Adj. Mag.

Brand: NHP

SKU: P160F2332TM

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 32A, Terasaki Breaker

Technical Specifications

Rated Current: 32 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 36 kA
Rated Service Short Circuit Breaking Capacity: 36 kA
Type of Protection: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Frame Size Rating: 160 A
Long Time Overload Protection Adjustment Range: 20-32 A
Instantaneous Protection Adjustment Range: 192-384 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 800 V
Rated Short Circuit Breaking Capacity: 6 kA
Rated Impulse Withstand Voltage: 8 kV
Power Loss: 27 W
Mechanical Life: 50000 cycles
Electrical Life: 30000 cycles
Cable Cross Section Range: 1.5-70 mm²
Dimensions (H x L x W): 130mm x 95.5mm x 90mm
Weight: 1 kg

Key Features

Adjustable thermal and magnetic trip settings for customized protection.
High breaking capacity of 36 kA for reliable circuit protection.
Suitable for isolation and front-side connection.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical panels in commercial buildings
General: Protection of electrical circuits in various applications

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Designed for energy efficiency, reducing power loss during operation.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 160 Frame 36kA 3P 32A is available now for immediate purchase. Ideal for industrial and commercial electrical applications.

P160F2332TM-AU-TBP-MCCB-160AF-Datasheet.pdf (P160F2332TM-AU-TBP-MCCB-160AF-Datasheet.pdf, 894 Kb) [Download]
