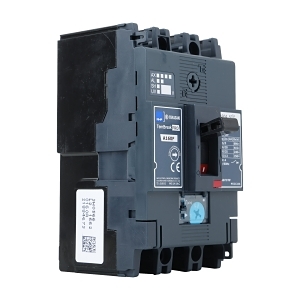

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 36kA 3P 63A Adj. Thermal Fix. Magnetic
Brand: NHP
SKU: A160F1363TF
Alternatively Known As: Terasaki Circuit Breaker, MCCB 160A, Thermal Magnetic Breaker
Technical Specifications
- Rated current: 63 A
- Number of poles: 3
- Max rated operation voltage: 690 V
- Rated ultimate short circuit breaking capacity: 36 kA
- Rated service short circuit breaking capacity: 20 kA
- Type of protection trip unit: Thermal/magnetic release
- Trip curve: Adj. thermal, fixed magnetic
- Frame size rating: 160 A
- Long time overload protection adjustment range: 40-63 A
- Rated frequency: 50-60 Hz
- Rated insulation voltage: 690 V
- Rated short circuit breaking capacity: 6 kA at 690 V AC
- Rated impulse withstand voltage: 8 kV
- Power loss per pole: 9.8 W
- Mechanical life: 20000 cycles
- Max vibration acceleration: 19 m/s²
- Cable cross section range: 1.5-70 mm²
- Pollution degree: 3
- Rated surrounding temperature: 50 °C
- Maximum operating temperature: 70 °C
- Dimensions (H x L x W): 130mm x 95mm x 75mm
- Weight: 0.8 kg
Key Features
- Rated current: 63 A with adjustable thermal and fixed magnetic trip unit.
- Ultimate short-circuit breaking capacity of 36 kA at 415 V.
- Suitable for isolation and features a front-side connection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical protection in commercial buildings
- General: Suitable for various electrical installations requiring circuit protection
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for electrical safety and performance.
Environmental Benefits
- Designed for long electrical life, reducing the need for frequent replacements and waste.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 160 Frame 36kA 3P 63A is available now for immediate purchase, ideal for industrial and commercial electrical protection.
