Home/Electrical/Switchgear/Circuit Breakers/Circuit Breakers A/C/Terasaki TemBreak PRO MCCB 160 Frame 50kA 3P 20A Adj. Therm. Adj. Mag.

Trade Discount 25%

SKU: P160N2320TM

BRAND: NHP

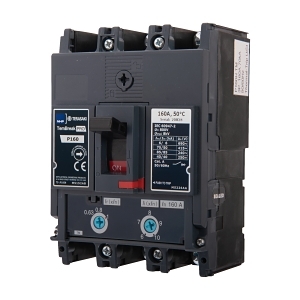

Terasaki TemBreak PRO MCCB 160 Frame 50kA 3P 20A Adj. Therm. Adj. Mag.

$515.30 List price: $684.30

+ −

30 Days Return Delivery Options

Description
Attachments

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 50kA 3P 20A Adj. Therm. Adj. Mag.

Brand: NHP

SKU: P160N2320TM

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 20A, Terasaki Circuit Breaker

Technical Specifications

Rated Current: 20 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 50 kA
Rated Service Short Circuit Breaking Capacity: 50 kA
Type of Protection Trip Unit: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Frame Size Rating: 160 A
Long Time Overload Protection Adjustment Range: 12.5-20 A
Instantaneous Protection Adjustment Range: 120-240 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 800 V
Rated Short Circuit Breaking Capacity (ICU): 6 kA
Rated Impulse Withstand Voltage: 8 kV
Power Loss: 24.9 W
Mechanical Life: 50,000 cycles
Electrical Life: 30,000 cycles
Cable Cross Section Range: 1.5-70 mm²
Dimensions (H x L x W): 130mm x 95.5mm x 90mm
Weight: 1 kg

Key Features

Adjustable thermal and magnetic trip settings for customized protection.
High short-circuit breaking capacity of 50 kA.
Suitable for isolation and front-side connection.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution and protection in commercial and industrial settings
General: Suitable for various electrical installations requiring circuit protection

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Designed for long electrical life, reducing waste and the need for frequent replacements.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 160 Frame 50kA 3P 20A is available now for immediate purchase, ideal for industrial power distribution applications.

P160N2320TM-AU-TBP-MCCB-160AF-Datasheet.pdf (P160N2320TM-AU-TBP-MCCB-160AF-Datasheet.pdf, 1,249 Kb) [Download]
