Home/Electrical/Switchgear/Circuit Breakers/Circuit Breakers A/C/Terasaki TemBreak PRO MCCB 160 Frame 50kA 4P 160A Adj. Therm. Adj. Mag.

Trade Discount 25%

SKU: P160N24160TM

BRAND: NHP

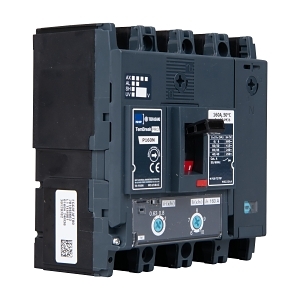

Terasaki TemBreak PRO MCCB 160 Frame 50kA 4P 160A Adj. Therm. Adj. Mag.

$958.20 List price: $1,272.30

+ −

30 Days Return Delivery Options

Description
Attachments

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 50kA 4P 160A Adj. Therm. Adj. Mag.

Brand: NHP

SKU: P160N24160TM

Alternatively Known As: Terasaki Circuit Breaker, MCCB 160A, 4 Pole Circuit Breaker

Technical Specifications

Rated Current: 160 A
Number of Poles: 4
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 50 kA
Rated Service Short Circuit Breaking Capacity: 50 kA
Type of Protection: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Frame Size Rating: 160 A
Long Time Overload Protection Adjustment Range: 100-160 A
Instantaneous Protection Adjustment Range: 960-1600 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 800 V
Rated Short Circuit Breaking Capacity (ICU): 6 kA
Rated Impulse Withstand Voltage: 8 kV
Power Loss per Pole: 14.1 W
Mechanical Life: 50,000 cycles
Electrical Life: 30,000 cycles
Cable Cross Section Range: 1.5-70 mm²
Dimensions (H x L x W): 130mm x 95.5mm x 120mm
Weight: 1.3 kg

Key Features

Adjustable thermal and magnetic trip settings for customized protection.
High breaking capacity of 50 kA for reliable circuit protection.
Suitable for isolation and front-side connection.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical systems in commercial buildings
General: Protection of electrical circuits in various applications

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Designed for high efficiency, reducing energy loss and improving overall system performance.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 160 Frame 50kA 4P 160A is available now for immediate purchase. Ideal for industrial and commercial electrical systems.

P160N24160TM-AU-TBP-MCCB-160AF-Datasheet.pdf (P160N24160TM-AU-TBP-MCCB-160AF-Datasheet.pdf, 1,222 Kb) [Download]
