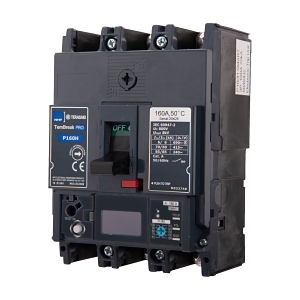

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 70kA 3P 100A Smart Electronic
Brand: NHP
SKU: P160H23100SE
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Smart Circuit Breaker
Technical Specifications
- Rated Current: 100 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 70 kA
- Rated Service Short Circuit Breaking Capacity: 50 kA
- Trip Curve: LSIG
- Frame Size Rating: 160 A
- Long Time Overload Protection Adjustment Range: 40-100 A
- Instantaneous Protection Adjustment Range: 300-1500 A
- Rated Insulation Voltage: 800 V
- Rated Frequency: 50-60 Hz
- Integrated Communication Function: Yes
- Mechanical Life: 50000 cycles
- Electrical Life: 30000 cycles
- Dimensions (H x L x W): 130mm x 95.5mm x 90mm
- Weight: 1 kg
Key Features
- Electronic release trip unit for precise protection.
- Integrated earth fault protection and energy metering function.
- Modbus TCP communication capability for smart monitoring.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in commercial buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Energy-efficient design reduces power loss and enhances system reliability.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 160 Frame 70kA 3P 100A Smart Electronic is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
