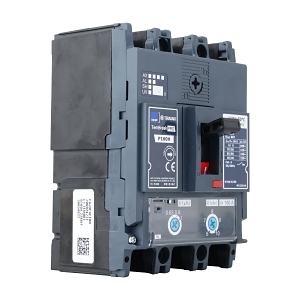

Terasaki TemBreak PRO MCCB 160 Frame 70kA 3P 160A Adj. Therm. Adj. Mag.

$960.30 List price: $1,275.20

+ −

30 Days Return Delivery Options

Description
Attachments

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 70kA 3P 160A Adj. Therm. Adj. Mag.

Brand: NHP

SKU: P160H23160TM

Alternatively Known As: MCCB, Circuit Breaker, Thermal Magnetic Circuit Breaker

Technical Specifications

Rated Current: 160 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 70 kA
Rated Service Short Circuit Breaking Capacity: 50 kA
Type of Protection: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Rated Insulation Voltage: 800 V
Rated Impulse Withstand Voltage: 8 kV
Power Loss: 42.3 W
Mechanical Life: 50,000 cycles
Electrical Life: 30,000 cycles
Cable Cross Section Range: 1.5-70 mm²
Pollution Degree: 3
Rated Surrounding Temperature: 50 °C
Dimensions (H x L x W): 130mm x 95.5mm x 90mm
Weight: 1 kg

Key Features

Adjustable thermal and magnetic trip settings for customized protection.
High breaking capacity of 70 kA for reliable short circuit protection.
Suitable for isolation and front-side connection.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution and protection in commercial and industrial settings
General: Suitable for various electrical installations requiring circuit protection

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for circuit breakers.

Environmental Benefits

Designed for long electrical life, reducing waste and the need for frequent replacements.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 160 Frame 70kA 3P 160A is available now for immediate purchase, ideal for industrial power distribution applications.

P160H23160TM-AU-TBP-MCCB-160AF-Datasheet.pdf (P160H23160TM-AU-TBP-MCCB-160AF-Datasheet.pdf, 1,240 Kb) [Download]
