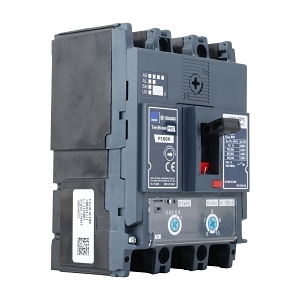

Product Name/Title: Terasaki TemBreak PRO MCCB 160 Frame 70kA 3P 63A Adj. Therm. Adj. Mag.
Brand: NHP
SKU: P160H2363TM
Alternatively Known As: MCCB, Circuit Breaker, Thermal Magnetic Circuit Breaker
Technical Specifications
- Rated Current: 63 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 70 kA
- Rated Service Short Circuit Breaking Capacity: 50 kA
- Type of Protection: Thermal/magnetic release
- Trip Curve: Adjustable thermal, adjustable magnetic
- Frame Size Rating: 160 A
- Long Time Overload Protection Adjustment Range: 40-63 A
- Instantaneous Protection Adjustment Range: 378-756 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity: 6 kA
- Rated Impulse Withstand Voltage: 8 kV
- Power Loss: 10.5 W
- Mechanical Life: 50000 cycles
- Max Vibration Acceleration: 19 m/s²
- Cable Cross Section Range: 1.5-70 mm²
- Dimensions (H x L x W): 130mm x 95.5mm x 90mm
- Weight: 1 kg
Key Features
- Adjustable thermal and magnetic trip settings for customized protection.
- High breaking capacity of 70 kA for reliable short circuit protection.
- Suitable for isolation and front-side connection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical protection in commercial buildings
- General: Suitable for various electrical installations requiring circuit protection
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed for long electrical life, reducing the need for frequent replacements and waste.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 160 Frame 70kA 3P 63A is available now for immediate purchase, ideal for industrial and commercial electrical protection.
