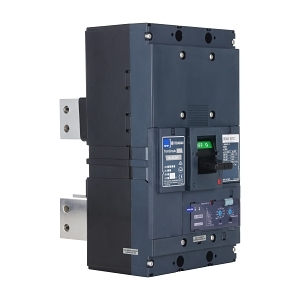

Product Name/Title: Terasaki TemBreak PRO MCCB 1600 Frame 50kA 3Pole 1600A Basic Electronic Rear Conn
Brand: NHP
SKU: B1600N31600BERC
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 1600A
Technical Specifications
- Rated Current: 1600 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 50 kA
- Rated Service Short Circuit Breaking Capacity: 38 kA
- Trip Curve: LSI
- Long Time Overload Protection Adjustment Range: 640-1600 A
- Instantaneous Protection Adjustment Range: 4000-19200 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity (ICU): 20 kA
- Rated Short Circuit Breaking Capacity (ICS): 15 kA
- Short Time Withstand Current: 15 kA
- Rated Impulse Withstand Voltage: 8 kV
- Power Loss per Pole: 133.33 W
- Electrical Life: 2000 cycles
- Mechanical Life: 5000 cycles
- Max Vibration Acceleration: 19 m/s²
- Max Vibration Frequency: 16.7 Hz
- Max Vibration Duration: 12 min
- Pollution Degree: 3
- Rated Surrounding Temperature: 50 °C
- Maximum Operating Temperature: 70 °C
- Storage Temperature: -10-70 °C
- Allowable Relative Humidity: 0-85 %
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 370mm x 401mm x 210mm
- Weight: 27 kg
Key Features
- Electronic release trip unit for precise protection.
- High short-circuit breaking capacity of 50 kA.
- Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical protection in large buildings
- General: Suitable for various electrical installations requiring high current protection
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and improving overall system performance.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 1600 Frame 50kA 3Pole 1600A is available now for immediate purchase. Ideal for industrial and commercial applications requiring high current protection.
