Home/Electrical/Switchgear/Circuit Breakers/Circuit Breakers A/C/Terasaki TemBreak PRO MCCB 250 Frame 36kA 4P 250A Adj. Thermal Adj. Magnetic

Trade Discount 25%

SKU: A250F4250TM

BRAND: NHP

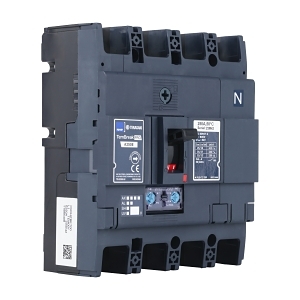

Terasaki TemBreak PRO MCCB 250 Frame 36kA 4P 250A Adj. Thermal Adj. Magnetic

$1,242.20 List price: $1,649.40

+ −

30 Days Return Delivery Options

Description
Attachments

Product Name/Title: Terasaki TemBreak PRO MCCB 250 Frame 36kA 4P 250A Adj. Thermal Adj. Magnetic

Brand: NHP

SKU: A250F4250TM

Alternatively Known As: MCCB, Circuit Breaker, Thermal Magnetic Circuit Breaker

Technical Specifications

Rated Current: 250 A
Number of Poles: 4
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 36 kA
Rated Service Short Circuit Breaking Capacity: 20 kA
Type of Protection: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Long Time Overload Protection Adjustment Range: 160-250 A
Instantaneous Protection Adjustment Range: 1250-2750 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 690 V
Rated Short Circuit Breaking Capacity (ICU): 4 kA
Rated Short Circuit Breaking Capacity (ICS): 2 kA
Rated Impulse Withstand Voltage: 8 kV
Over Voltage Category: IV
Mechanical Life: 18000 cycles
Electrical Life: 6000 cycles
Cable Cross Section Range: 35-185 mm²
Dimensions (H x L x W): 165mm x 95.5mm x 140mm
Weight: 1.9 kg

Key Features

Adjustable thermal and magnetic trip settings for customized protection.
High breaking capacity of 36 kA at 415 V for enhanced safety.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical installations in commercial buildings
General: Protection of electrical circuits in various applications

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Designed for energy efficiency, reducing power loss during operation.

Warranty Information

Standard warranty of 12 months against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 250 Frame 36kA 4P 250A is available now for immediate purchase, ideal for industrial and commercial electrical installations.

A250F4250TM-AU-TBP-MCCB-250AF-Datasheet.pdf (A250F4250TM-AU-TBP-MCCB-250AF-Datasheet.pdf, 1,082 Kb) [Download]
