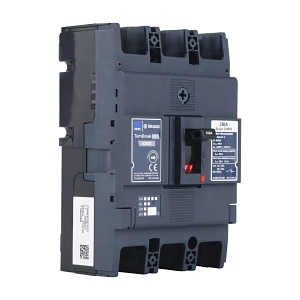

Product Name/Title: Terasaki TemBreak PRO MCCB 250 Frame 3P 250A Non Auto Switch
Brand: NHP
SKU: A250D3250NN
Alternatively Known As: Terasaki Circuit Breaker, MCCB 250A, Non Auto MCCB
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Frequency: 50-60 Hz
- Short Time Withstand Current: 3 kA
- Rated Impulse Withstand Voltage: 8 kV
- Power Loss: 48 W
- Mechanical Life: 10,000 cycles
- Electrical Life: 6,000 cycles
- Cable Cross Section Range: 35-185 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature: 50 °C
- Dimensions (H x L x W): 165mm x 95.5mm x 105mm
- Weight: 1.5 kg
Key Features
- 250A rated current with 3 poles for robust circuit protection.
- Non auto-switch type for manual operation.
- Suitable for isolation and front-side connection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical panels in commercial buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and operational costs.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 250 Frame 3P 250A Non Auto Switch is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
