Home/Electrical/Switchgear/Circuit Breakers/Circuit Breakers A/C/Terasaki TemBreak PRO MCCB 250 Frame 70kA 4P 160A Adj. Thermal Adj. Magnetic

Trade Discount 25%

SKU: P250H4160TM

BRAND: NHP

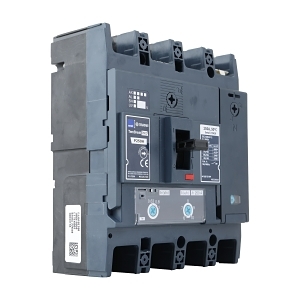

Terasaki TemBreak PRO MCCB 250 Frame 70kA 4P 160A Adj. Thermal Adj. Magnetic

$1,897.10 List price: $2,519.00

+ −

30 Days Return Delivery Options

Description
Attachments

Product Name/Title: Terasaki TemBreak PRO MCCB 250 Frame 70kA 4P 160A Adj. Thermal Adj. Magnetic

Brand: NHP

SKU: P250H4160TM

Alternatively Known As: MCCB, Circuit Breaker, Thermal Magnetic Circuit Breaker

Technical Specifications

Rated Current: 160 A
Number of Poles: 4
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 70 kA
Rated Service Short Circuit Breaking Capacity: 50 kA
Type of Protection: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Frame Size Rating: 250 A
Long Time Overload Protection Adjustment Range: 100-160 A
Instantaneous Protection Adjustment Range: 960-2080 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 800 V
Rated Short Circuit Breaking Capacity (ICU): 6 kA
Rated Impulse Withstand Voltage: 8 kV
Power Loss: 29.1 W
Mechanical Life: 30,000 cycles
Electrical Life: 10,000 cycles
Dimensions (H x L x W): 165mm x 95.5mm x 140mm
Weight: 2 kg

Key Features

Adjustable thermal and magnetic trip settings for customized protection.
High breaking capacity of 70 kA at 415 V for enhanced safety.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical protection in commercial buildings
General: Suitable for various electrical installations requiring circuit protection

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Designed for energy efficiency, reducing power loss during operation.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 250 Frame 70kA 4P 160A is available now for immediate purchase. Ideal for industrial and commercial electrical protection.

P250H4160TM-AU-TBP-MCCB-250AF-Datasheet.pdf (P250H4160TM-AU-TBP-MCCB-250AF-Datasheet.pdf, 1,295 Kb) [Download]
