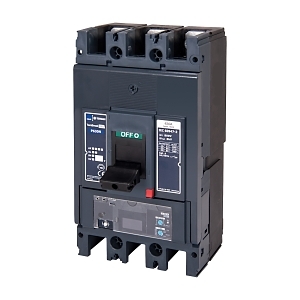

Product Name/Title: Terasaki TemBreak PRO MCCB 400 Frame 110kA 3P 400A Basic Electronic
Brand: NHP
SKU: P400S3400BE
Alternatively Known As: Terasaki Circuit Breaker, MCCB 400A, Electronic Circuit Breaker
Technical Specifications
- Rated Current: 400 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 110 kA
- Rated Service Short Circuit Breaking Capacity: 110 kA
- Type of Protection Trip Unit: Electronic release
- Trip Curve: LSI
- Frame Size Rating: 400 A
- Long Time Overload Protection Adjustment Range: 147-400 A
- Instantaneous Protection Adjustment Range: 1200-4800 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity (ICU): 12 kA
- Rated Short Circuit Breaking Capacity (ICS): 12 kA
- Short Time Withstand Current (ICW): 5 kA
- Mechanical Life: 15000 cycles
- Electrical Life: 6000 cycles
- Power Loss: 85.2 W
- Cable Cross Section Range: 35-400 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature: 50 °C
- Maximum Operating Temperature: 70 °C
- Dimensions (H x L x W): 260mm x 145mm x 140mm
- Weight: 4.3 kg
Key Features
- Electronic release trip unit for precise protection.
- High breaking capacity of 110 kA for enhanced safety.
- Suitable for isolation and front-side connection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in large buildings
- General: Protection of electrical circuits from overload and short circuits
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and improving system reliability.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 400 Frame 110kA 3P 400A Basic Electronic is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable circuit protection.
