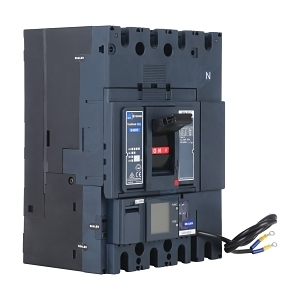

Terasaki TemBreak PRO MCCB 400 Frame 125kA 4P 250A Amp Meter Electronic

$7,309.10 List price: $9,705.50

+ −

30 Days Return Delivery Options

Description
Attachments

Product Name/Title: Terasaki TemBreak PRO MCCB 400 Frame 125kA 4P 250A Amp Meter Electronic

Brand: NHP

SKU: B400P4250SX

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Electronic Circuit Breaker

Technical Specifications

Rated Current: 250 A
Number of Poles: 4
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 125 kA
Rated Service Short Circuit Breaking Capacity: 85 kA
Trip Curve: LSI
Frame Size Rating: 400 A
Long Time Overload Protection Adjustment Range: 100-250 A
Instantaneous Protection Adjustment Range: 500-3250 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 800 V
Rated Short Circuit Breaking Capacity at 690 V AC: 50 kA
Rated Impulse Withstand Voltage: 8 kV
Mechanical Life: 15000 cycles
Pollution Degree: 3
Rated Surrounding Temperature: 50 °C
Dimensions (H x L x W): 260mm x 140mm x 185mm
Weight: 5.7 kg

Key Features

Electronic release trip unit for precise protection.
Integrated energy metering function for monitoring power usage.
High short-circuit breaking capacity of 125 kA.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical installations in commercial buildings
General: Protection of electrical circuits in various applications

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Energy metering function helps in optimizing energy consumption.

Warranty Information

Standard warranty as per manufacturer’s policy.

Available Now

The Terasaki TemBreak PRO MCCB 400 Frame 125kA 4P 250A Amp Meter Electronic is available now for immediate purchase. Ideal for industrial and commercial electrical installations.

Non-Returnable & Non-Cancellable

B400P4250SX-AU-TBP-MCCB-400AF-Datasheet.pdf (B400P4250SX-AU-TBP-MCCB-400AF-Datasheet.pdf, 723 Kb) [Download]
