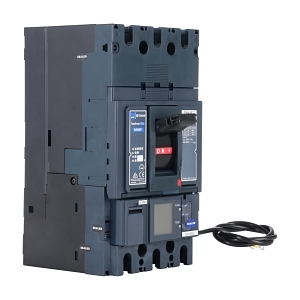

Product Name/Title: Terasaki TemBreak PRO MCCB 400 Frame 200kA 3P 250A Amp Meter Electronic
Brand: NHP
SKU: B400R3250SX
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 250A
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 200 kA
- Rated Service Short Circuit Breaking Capacity: 150 kA
- Trip Curve: LSI
- Frame Size Rating: 400 A
- Long Time Overload Protection Adjustment Range: 100-250 A
- Instantaneous Protection Adjustment Range: 500-3250 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Short Time Withstand Current: 5 kA
- Mechanical Life: 15000 cycles
- Pollution Degree: 3
- Rated Surrounding Temperature: 50 °C
- Dimensions (H x L x W): 260mm x 182mm x 140mm
- Weight: 4.3 kg
Key Features
- Electronic release trip unit for precise protection.
- Integrated energy metering function for monitoring power usage.
- High short-circuit breaking capacity of 200 kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety and compliance.
Applications
- Industrial: Power distribution and protection in commercial and industrial settings
- Electrical: Suitable for use in electrical panels and switchboards
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Energy metering function helps in optimizing energy consumption.
Warranty Information
Standard warranty of 12 months against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 400 Frame 200kA 3P 250A Amp Meter Electronic is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
Non-Returnable & Non-Cancellable
