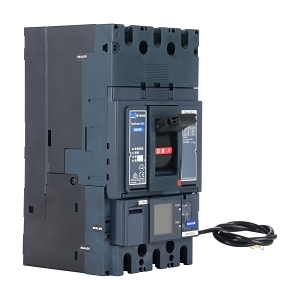

Product Name/Title: Terasaki TemBreak PRO MCCB 400 Frame 200kA 3P 400A Amp Meter Electronic
Brand: NHP
SKU: B400R3400SX
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 400A
Technical Specifications
- Rated Current: 400 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 200 kA
- Rated Service Short Circuit Breaking Capacity: 150 kA
- Trip Curve: LSI
- Long Time Overload Protection Adjustment Range: 160-400 A
- Instantaneous Protection Adjustment Range: 800-5200 A
- Rated Insulation Voltage: 800 V
- Rated Frequency: 50-60 Hz
- Power Loss: 140 W
- Mechanical Life: 15000 cycles
- Electrical Life: 6000 cycles
- Cable Cross Section Range: 35-400 mm²
- Pollution Degree: 3
- Max Operating Temperature: 70 °C
- Dimensions (H x L x W): 260mm x 182mm x 140mm
- Weight: 4.3 kg
Key Features
- Electronic release trip unit for precise protection.
- Integrated energy metering function for monitoring power usage.
- High short circuit breaking capacity of 200 kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in large buildings
- General: Protection of electrical circuits from overloads and short circuits
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Efficient energy management reduces overall power consumption.
Warranty Information
Standard warranty applies, please check with the supplier for details.
Available Now
The Terasaki TemBreak PRO MCCB 400 Frame 200kA 3P 400A Amp Meter Electronic is available for immediate purchase, ideal for industrial and commercial electrical systems.
Non-Returnable & Non-Cancellable
