Home/Electrical/Switchgear/Circuit Breakers/Circuit Breakers A/C/Terasaki TemBreak PRO MCCB 400 Frame 36kA 3P 250A Basic Electronic

Trade Discount 25%

SKU: P400F3250BE

BRAND: NHP

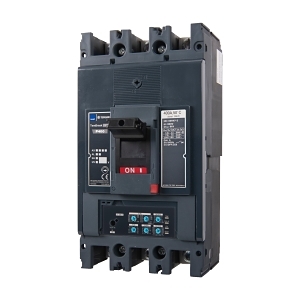

Terasaki TemBreak PRO MCCB 400 Frame 36kA 3P 250A Basic Electronic

$1,848.20 List price: $2,454.20

+ −

30 Days Return Delivery Options

Description
Attachments

Product Name/Title: Terasaki TemBreak PRO MCCB 400 Frame 36kA 3P 250A Basic Electronic

Brand: NHP

SKU: P400F3250BE

Alternatively Known As: Terasaki MCCB, TemBreak PRO Circuit Breaker, 250A MCCB

Technical Specifications

Rated Current: 250 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 36 kA
Rated Service Short Circuit Breaking Capacity: 36 kA
Type of Protection Trip Unit: Electronic release
Trip Curve: LSI
Frame Size Rating: 400 A
Long Time Overload Protection Adjustment Range: 92-250 A
Instantaneous Protection Adjustment Range: 750-3000 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 800 V
Short Time Withstand Current: 5 kA
Rated Impulse Withstand Voltage: 8 kV
Power Loss per Pole: 11.1 W
Mechanical Life: 15000 cycles
Max Vibration Acceleration: 19 m/s²
Cable Cross Section Range: 35-400 mm²
Pollution Degree: 3
Rated Surrounding Temperature: 50 °C
Maximum Operating Temperature: 70 °C
Dimensions (H x L x W): 260mm x 145mm x 140mm
Weight: 4.3 kg

Key Features

Electronic release for precise protection.
36 kA short circuit breaking capacity.
Adjustable overload and short circuit protection.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical installations in commercial buildings
General: Protection of electrical circuits in various applications

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Designed for energy efficiency, reducing power loss during operation.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 400 Frame 36kA 3P 250A Basic Electronic is available now for immediate purchase. Ideal for industrial and commercial electrical installations.

P400F3250BE-AU-TBP-MCCB-400AF-Datasheet.pdf (P400F3250BE-AU-TBP-MCCB-400AF-Datasheet.pdf, 1,147 Kb) [Download]
