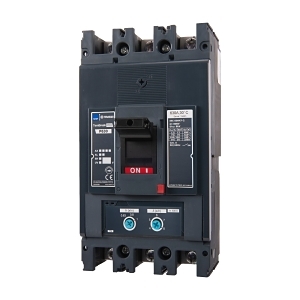

Terasaki TemBreak PRO MCCB 630 Frame 25kA 3P 630A Adj. Thermal Adj. Magnetic

$2,016.80 List price: $2,678.00

+ −

30 Days Return Delivery Options

Description
Attachments

Product Name/Title: Terasaki TemBreak PRO MCCB 630 Frame 25kA 3P 630A Adj. Thermal Adj. Magnetic

Brand: NHP

SKU: P630E3630TM

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 630A

Technical Specifications

Rated Current: 630 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 25 kA
Rated Service Short Circuit Breaking Capacity: 25 kA
Type of Protection Trip Unit: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Rated Insulation Voltage: 800 V
Rated Impulse Withstand Voltage: 8 kV
Over Voltage Category: IV
Electrical Life: 4000 cycles
Mechanical Life: 15000 cycles
Cable Cross Section Range: 35-400 mm²
Pollution Degree: 3
Rated Surrounding Temperature: 30 °C
Maximum Operating Temperature: 70 °C
Storage Temperature: -10-70 °C
Allowable Relative Humidity: 0-85 %
Max Altitude Before Derating: 2000 m
Dimensions (H x L x W): 260mm x 151mm x 140mm
Weight: 5 kg

Key Features

Adjustable thermal and magnetic trip settings for customized protection.
High breaking capacity of 25 kA for reliable circuit protection.
Suitable for isolation and front-side connection.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical installations in commercial buildings
General: Protection of electrical circuits in various applications

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Designed for energy efficiency, reducing power loss during operation.

Warranty Information

Standard warranty of 2 years against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 630 Frame 25kA 3P 630A is available now for immediate purchase, ideal for industrial and commercial electrical installations.

P630E3630TM-AU-TBP-MCCB-630AF-Datasheet.pdf (P630E3630TM-AU-TBP-MCCB-630AF-Datasheet.pdf, 1,130 Kb) [Download]
