Home/Electrical/Switchgear/Circuit Breakers/Circuit Breakers A/C/Terasaki TemBreak PRO MCCB 630 Frame 70kA 3P 630A Basic Electronic

Trade Discount 25%

SKU: P630H3630BE

BRAND: NHP

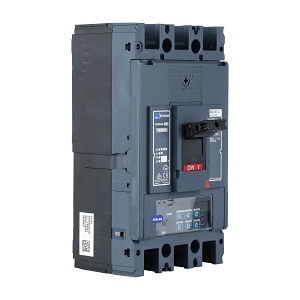

Terasaki TemBreak PRO MCCB 630 Frame 70kA 3P 630A Basic Electronic

$3,280.90 List price: $4,356.60

+ −

30 Days Return Delivery Options

Description
Attachments

Product Name/Title: Terasaki TemBreak PRO MCCB 630 Frame 70kA 3P 630A Basic Electronic

Brand: NHP

SKU: P630H3630BE

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 630A

Technical Specifications

Rated Current: 630 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 70 kA
Rated Service Short Circuit Breaking Capacity: 70 kA
Type of Protection Trip Unit: Electronic release
Trip Curve: LSI
Long Time Overload Protection Adjustment Range: 230-630 A
Instantaneous Protection Adjustment Range: 1890-6930 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 800 V
Rated Short Circuit Breaking Capacity: 12 kA
Power Loss: 156 W
Mechanical Life: 15000 cycles
Electrical Life: 4000 cycles
Pollution Degree: 3
Rated Surrounding Temperature: 50 °C
Maximum Operating Temperature: 70 °C
Dimensions (H x L x W): 260mm x 145mm x 140mm
Weight: 5 kg

Key Features

Electronic release trip unit for precise protection.
High breaking capacity of 70 kA for reliable circuit protection.
Suitable for isolation and reverse connection of supply.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical installations in commercial buildings
General: Protection of electrical circuits in various applications

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Designed for high efficiency, reducing energy loss and improving overall system performance.

Warranty Information

Standard warranty of 2 years against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 630 Frame 70kA 3P 630A Basic Electronic is available now for immediate purchase. Ideal for industrial and commercial electrical installations.

P630H3630BE-AU-TBP-MCCB-630AF-Datasheet.pdf (P630H3630BE-AU-TBP-MCCB-630AF-Datasheet.pdf, 865 Kb) [Download]
