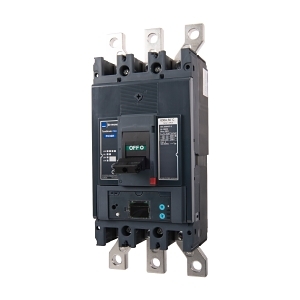

Terasaki TemBreak PRO MCCB 630 Frame 70kA 3P 630A Smart Electronic

SKU: P630H3630SE

BRAND: NHP

Terasaki TemBreak PRO MCCB 630 Frame 70kA 3P 630A Smart Electronic

$7,726.70 List price: $10,260.00

+ −

30 Days Return Delivery Options

Description
Attachments

Product Name/Title: Terasaki TemBreak PRO MCCB 630 Frame 70kA 3P 630A Smart Electronic

Brand: NHP

SKU: P630H3630SE

Alternatively Known As: Terasaki MCCB, TemBreak PRO Circuit Breaker, Smart Electronic MCCB

Technical Specifications

Rated Current: 630 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 70 kA
Rated Service Short Circuit Breaking Capacity: 70 kA
Trip Curve: LSIG
Long Time Overload Protection Adjustment Range: 250-630 A
Instantaneous Protection Adjustment Range: 1890-6930 A
Integrated Earth Fault Protection: Yes
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 800 V
Rated Short Circuit Breaking Capacity (ICU): 12 kA
Rated Impulse Withstand Voltage: 8 kV
Power Loss: 156 W
Communications Protocol: Modbus TCP via option module
Max Vibration Acceleration: 19 m/s²
Max Operating Temperature: 70 °C
Storage Temperature: -10-70 °C
Dimensions (H x L x W): 260mm x 145mm x 140mm
Weight: 5 kg

Key Features

Electronic release trip unit for precise protection.
Integrated energy metering and communication functions.
Zone selective interlocking for enhanced safety.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical systems in large buildings
General: Protection of electrical circuits from overloads and short circuits

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Energy-efficient design reduces power consumption.
Long mechanical life minimizes waste and resource use.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 630 Frame 70kA 3P 630A Smart Electronic is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable circuit protection.

Non-Returnable & Non-Cancellable

P630H3630SE-AU-TBP-MCCB-630AF-Datasheet.pdf (P630H3630SE-AU-TBP-MCCB-630AF-Datasheet.pdf, 367 Kb) [Download]
