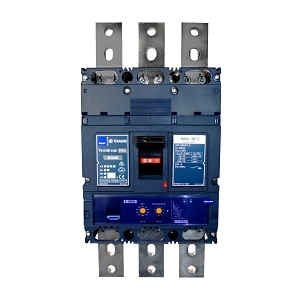

Product Name/Title: Terasaki TemBreak PRO MCCB 800 Frame 125kA 3P 800A Basic Electronic
Brand: NHP
SKU: B800P3800BE
Alternatively Known As: Terasaki Circuit Breaker, MCCB 800A, TemBreak PRO 800A
Technical Specifications
- Rated Current: 800 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 125 kA
- Rated Service Short Circuit Breaking Capacity: 94 kA
- Type of Protection Trip Unit: Electronic release
- Trip Curve: LSI
- Long Time Overload Protection Adjustment Range: 320-800 A
- Instantaneous Protection Adjustment Range: 2000-9600 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity: 25 kA at 690 V AC
- Short Time Withstand Current: 10 kA
- Rated Impulse Withstand Voltage: 8 kV
- Power Loss per Pole: 93.33 W
- Electrical Life: 4000 cycles
- Mechanical Life: 10000 cycles
- Max Vibration Acceleration: 19 m/s²
- Max Vibration Frequency: 16.7 Hz
- Max Vibration Duration: 12 min
- Pollution Degree: 3
- Rated Surrounding Temperature: 50 °C
- Maximum Operating Temperature: 70 °C
- Storage Temperature: -10-70 °C
- Allowable Relative Humidity: 0-85 %
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 433mm x 182mm x 210mm
- Weight: 14.8 kg
Key Features
- Electronic release trip unit for precise protection.
- High short-circuit breaking capacity of 125 kA.
- Suitable for isolation and front-side connection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical installations in large buildings
- General: Protection of electrical circuits from overloads and short circuits
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and operational costs.
Warranty Information
Standard warranty of 2 years against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 800 Frame 125kA 3P 800A Basic Electronic is available now for immediate purchase, ideal for industrial and commercial electrical installations.
