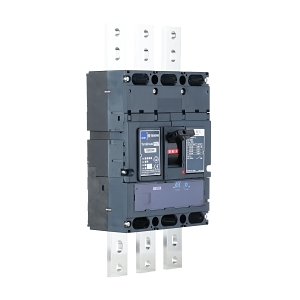

Product Name/Title: Terasaki TemBreak PRO MCCB 800 Frame 50kA 3P 800A Adjustable Thermal Adjustable Magnetic
Brand: NHP
SKU: B800N3800TM
Alternatively Known As: MCCB, Circuit Breaker, Thermal Magnetic Circuit Breaker
Technical Specifications
- Rated Current: 800 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 50 kA
- Rated Service Short Circuit Breaking Capacity: 50 kA
- Type of Protection: Thermal/magnetic release
- Trip Curve: Adjustable thermal, adjustable magnetic
- Frame Size Rating: 800 A
- Long Time Overload Protection Adjustment Range: 504-800 A
- Instantaneous Protection Adjustment Range: 4000-8000 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity: 20 kA at 690 V AC
- Rated Impulse Withstand Voltage: 8 kV
- Over Voltage Category: IV
- Power Loss: 280 W
- Mechanical Life: 10000 cycles
- Max Vibration Acceleration: 19 m/s²
- Max Operating Temperature: 70 °C
- Dimensions (H x L x W): 433mm x 145mm x 210mm
- Weight: 9.1 kg
Key Features
- Adjustable thermal and magnetic trip settings for customized protection.
- High breaking capacity of 50 kA for reliable circuit protection.
- Suitable for isolation and front-side connection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in large buildings
- General: Protection of electrical circuits from overloads and short circuits
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and operational costs.
Warranty Information
Standard warranty of 2 years against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 800 Frame 50kA 3P 800A is available now for immediate purchase, ideal for industrial and commercial electrical systems.
