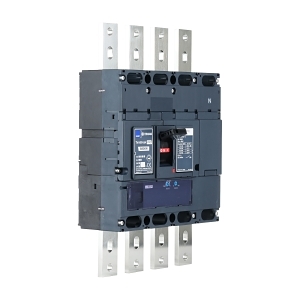

Terasaki TemBreak PRO MCCB 800 Frame 50kA 4P 800A Adjustable Thermal Adjustable Magnetic

SKU: B800N4800TM

BRAND: NHP

Terasaki TemBreak PRO MCCB 800 Frame 50kA 4P 800A Adjustable Thermal Adjustable Magnetic

$5,020.20 List price: $6,666.10

+ −

30 Days Return Delivery Options

Description
Attachments

Product Name/Title: Terasaki TemBreak PRO MCCB 800 Frame 50kA 4P 800A Adjustable Thermal Adjustable Magnetic

Brand: NHP

SKU: B800N4800TM

Alternatively Known As: Terasaki Circuit Breaker, MCCB 800A, Adjustable MCCB

Technical Specifications

Rated Current: 800 A
Number of Poles: 4
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 50 kA
Rated Service Short Circuit Breaking Capacity: 50 kA
Type of Protection: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Frame Size Rating: 800 A
Long Time Overload Protection Adjustment Range: 504-800 A
Instantaneous Protection Adjustment Range: 4000-8000 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 800 V
Rated Short Circuit Breaking Capacity (ICU): 20 kA
Rated Impulse Withstand Voltage: 8 kV
Mechanical Life: 10000 cycles
Electrical Life: 4000 cycles
Dimensions (H x L x W): 433mm x 145mm x 280mm
Weight: 12.3 kg

Key Features

Adjustable thermal and magnetic trip settings for customized protection.
High breaking capacity of 50 kA for reliable short circuit protection.
Suitable for isolation and front-side connection.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical protection in commercial buildings
General: Suitable for various electrical installations requiring circuit protection

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Designed for high efficiency, reducing energy loss and operational costs.

Warranty Information

Standard warranty of 2 years against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 800 Frame is available now for immediate purchase, ideal for industrial and commercial electrical applications.

B800N4800TM-AU-TBP-MCCB-800AF-Datasheet.pdf (B800N4800TM-AU-TBP-MCCB-800AF-Datasheet.pdf, 1,075 Kb) [Download]
