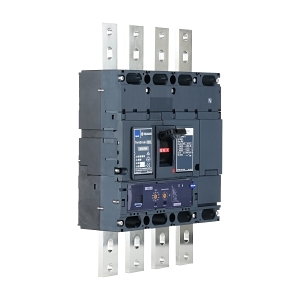

Product Name/Title: Terasaki TemBreak PRO MCCB 800 Frame 50kA 4P 800A Basic Electronic
Brand: NHP
SKU: B800N4800BE
Alternatively Known As: Terasaki MCCB, TemBreak PRO Circuit Breaker, 800A MCCB
Technical Specifications
- Rated Current: 800 A
- Number of Poles: 4
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 50 kA
- Rated Service Short Circuit Breaking Capacity: 50 kA
- Trip Curve: LSI
- Long Time Overload Protection Adjustment Range: 320-800 A
- Instantaneous Protection Adjustment Range: 2000-9600 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity: 20 kA
- Short Time Withstand Current: 10 kA
- Rated Impulse Withstand Voltage: 8 kV
- Over Voltage Category: IV
- Electrical Life: 4000 cycles
- Mechanical Life: 10000 cycles
- Max Vibration Acceleration: 19 m/s²
- Max Vibration Frequency: 16.7 Hz
- Max Vibration Duration: 12 min
- Pollution Degree: 3
- Rated Surrounding Temperature: 50 °C
- Maximum Operating Temperature: 70 °C
- Storage Temperature: -10-70 °C
- Allowable Relative Humidity: 0-85 %
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 433mm x 145mm x 280mm
- Weight: 12.3 kg
Key Features
- Electronic release trip unit for precise protection.
- High breaking capacity of 50 kA for reliable circuit protection.
- Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical installations in commercial buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and operational costs.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 800 Frame 50kA 4P 800A Basic Electronic is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
