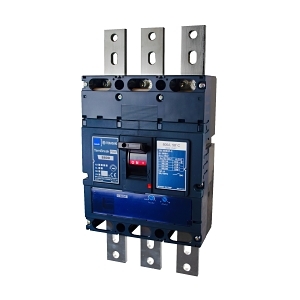

Terasaki TemBreak PRO MCCB 800 Frame 70kA 3P 630A Adjustable Thermal Adjustable Magnetic

SKU: B800H3630TM

BRAND: NHP

Terasaki TemBreak PRO MCCB 800 Frame 70kA 3P 630A Adjustable Thermal Adjustable Magnetic

$5,166.20 List price: $6,860.00

+ −

30 Days Return Delivery Options

Description
Attachments

Product Name/Title: Terasaki TemBreak PRO MCCB 800 Frame 70kA 3P 630A Adjustable Thermal Adjustable Magnetic

Brand: NHP

SKU: B800H3630TM

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 630A

Technical Specifications

Rated Current: 630 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 70 kA
Rated Service Short Circuit Breaking Capacity: 50 kA
Type of Protection: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Frame Size Rating: 800 A
Long Time Overload Protection Adjustment Range: 396-630 A
Instantaneous Protection Adjustment Range: 3150-6300 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 800 V
Rated Short Circuit Breaking Capacity: 25 kA at 690 V AC
Rated Impulse Withstand Voltage: 8 kV
Mechanical Life: 10,000 cycles
Electrical Life: 4,000 cycles
Dimensions (H x L x W): 433mm x 145mm x 210mm
Weight: 8.5 kg

Key Features

Adjustable thermal and magnetic trip settings for customized protection.
High breaking capacity of 70 kA for reliable circuit protection.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical systems in large buildings
General: Protection of electrical circuits from overloads and short circuits

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Designed for high efficiency, reducing energy loss and improving overall system performance.

Warranty Information

Standard warranty applies, please check with the supplier for details.

Available Now

The Terasaki TemBreak PRO MCCB 800 Frame 70kA 3P 630A is available now for immediate purchase. Ideal for industrial and commercial electrical systems.

Non-Returnable & Non-Cancellable

B800H3630TM-AU-TBP-MCCB-800AF-Datasheet.pdf (B800H3630TM-AU-TBP-MCCB-800AF-Datasheet.pdf, 1,149 Kb) [Download]
