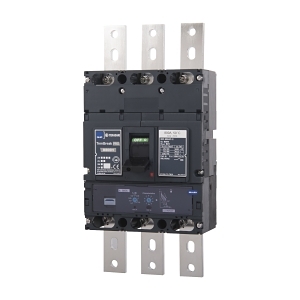

Product Name/Title: Terasaki TemBreak PRO MCCB 800 Frame 70kA 3P 800A Basic Electronic with Ground Fault
Brand: NHP
SKU: B800H3800BEG
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker with Ground Fault
Technical Specifications
- Rated Current: 800 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 70 kA
- Rated Service Short Circuit Breaking Capacity: 50 kA
- Trip Curve: LSIG
- Long Time Overload Protection Adjustment Range: 320-800 A
- Instantaneous Protection Adjustment Range: 2000-9600 A
- Rated Insulation Voltage: 800 V
- Rated Frequency: 50-60 Hz
- Electrical Life: 4000 cycles
- Mechanical Life: 10000 cycles
- Pollution Degree: 3
- Max Operating Temperature: 70 °C
- Dimensions (H x L x W): 433mm x 145mm x 210mm
- Weight: 9.1 kg
Key Features
- Electronic release trip unit for precise protection.
- Integrated earth fault protection for enhanced safety.
- High short circuit breaking capacity of 70 kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical installations in commercial buildings
- General: Protection of electrical circuits from overloads and short circuits
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and operational costs.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 800 Frame 70kA 3P 800A is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
