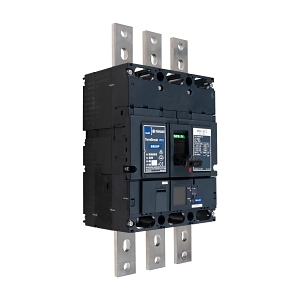

Terasaki TemBreak PRO Moulded Case Circuit Breaker 800 Frame 50KA 3P 800A Smart Electronic

SKU: B800N3800SE

BRAND: NHP

Terasaki TemBreak PRO Moulded Case Circuit Breaker 800 Frame 50KA 3P 800A Smart Electronic

$8,562.00 List price: $11,369.20

+ −

30 Days Return Delivery Options

Description
Attachments

Product Name/Title: Terasaki TemBreak PRO Moulded Case Circuit Breaker 800 Frame 50KA 3P 800A Smart Electronic

Brand: NHP

SKU: B800N3800SE

Alternatively Known As: MCCB, Circuit Breaker, Power Switching Circuit Breaker

Technical Specifications

Rated current: 800 A
Number of poles: 3
Max rated operation voltage: 690 V
Rated ultimate short circuit breaking capacity: 70 kA
Frame size rating: 800 A
Rated frequency: 50-60 Hz
Rated insulation voltage: 800 V
Suitable for isolation: Yes
Rated short circuit breaking capacity: 25 kA at 690 V AC
Rated short circuit breaking capacity: 20 kA at 690 V AC
Electrical life: 4000 cycles
Mechanical life: 10000 cycles
Max vibration acceleration: 19 m/s²
Max vibration frequency: 16.7 Hz
Max vibration duration: 12 min
Cable cross section range: 35-300 mm²
Pollution degree: 3
Rated surrounding temperature: 50 °C
Rated temperature: -5 to 70 °C
Maximum operating temperature: 70 °C
Storage temperature: -10 to 70 °C
Allowable relative humidity: 0-85 %
Max altitude before derating: 2000 m
Dimensions (H x L x W): 273mm x 145mm x 210mm
Weight: 9.1 kg

Key Features

Rated current: 800 A
Three poles for three-phase systems
High breaking capacity of 70 kA at 415 V

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical systems in large buildings
General: Protection of electrical circuits in various applications

Standards & Compliance

Complies with AS/NZS 3000 for electrical installation standards.

Environmental Benefits

Designed for high efficiency, reducing energy loss in electrical systems.

Warranty Information

Standard warranty as per manufacturer’s policy.

Available Now

The Terasaki TemBreak PRO Moulded Case Circuit Breaker is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable circuit protection.

Non-Returnable & Non-Cancellable

B800N3800SE-AU-TBP-MCCB-800AF-Datasheet.pdf (B800N3800SE-AU-TBP-MCCB-800AF-Datasheet.pdf, 245 Kb) [Download]
