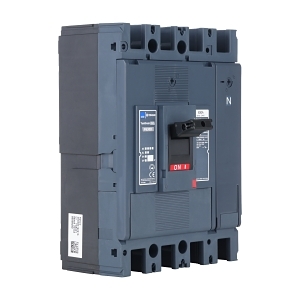

Product Name/Title: Terasaki TemBreak PRO Moulded Case Circuit Breaker P630 Frame Switch 4P 630A Non Auto Switch
Brand: NHP
SKU: P630D4630NN
Alternatively Known As: Terasaki MCCB, Moulded Case Circuit Breaker, Circuit Breaker 630A
- Rated current: 630 A
- Number of poles: 4
- Max rated operation voltage: 690 V
- Rated ultimate short circuit breaking capacity: 110 kA
- Rated frequency: 50-60 Hz
- Rated insulation voltage: 800 V
- Rated short circuit breaking capacity: 12 kA
- Rated impulse withstand voltage: 8 kV
- Electrical life: 4000 cycles
- Mechanical life: 20000 cycles
- Pollution degree: 3
- Rated surrounding temperature: 50 °C
- Maximum operating temperature: 70 °C
- Dimensions (H x L x W): 260mm x 130mm x 185mm
- Weight: 6.6 kg
- Rated current: 630 A
- 4 poles for versatile applications
- High breaking capacity of 110 kA at 415 V
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in large buildings
- General: Protection of electrical circuits in various applications
- Complies with AS/NZS 3000 for electrical installation safety.
- Designed for high efficiency, reducing energy loss in electrical systems.
Standard warranty as per manufacturer’s policy.
The Terasaki TemBreak PRO Moulded Case Circuit Breaker P630 Frame Switch 4P 630A Non Auto Switch is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
