Home/Electrical/Switchgear/Circuit Breakers/Circuit Breakers A/C/Terasaki TemPower 2 AR ACB Body AR2 65kA 1250A 3P with AGR21CL and Shunt Trip

Trade Discount 25%

SKU: ARB2123STD

BRAND: NHP

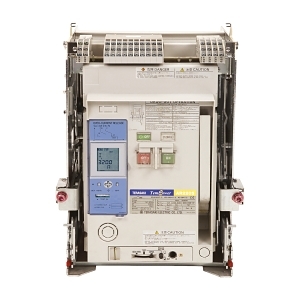

Terasaki TemPower 2 AR ACB Body AR2 65kA 1250A 3P with AGR21CL and Shunt Trip

$19,035.10 List price: $25,276.10

Free pick up (over 25 kg)

For delivery quote message

30 Days Return Delivery Options

Description
Attachments

Product Name/Title: Terasaki TemPower 2 AR ACB Body AR2 65kA 1250A 3P with AGR21CL and Shunt Trip

Brand: NHP

SKU: ARB2123STD

Alternatively Known As: Terasaki ACB, AR ACB Body, Circuit Breaker, Air Circuit Breaker

Technical Specifications

Rated Current: 1250 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 65 kA
Rated Service Short Circuit Breaking Capacity: 65 kA
Type of Protection Trip Unit: Electronic release
Trip Curve: LSIG
Long Time Overload Protection Adjustment Range: 500-1250 A
Instantaneous Protection Adjustment Range: 2500-20000 A
Rated Insulation Voltage: 1000 V
Rated Short Circuit Breaking Capacity: 50 kA
Rated Impulse Withstand Voltage: 12 kV
Power Loss: 350 W
Mechanical Life Service Cycles: 15000 cycles
Max Vibration Acceleration: 0.7 m/s²
Rated Surrounding Temperature Without Derating: 55 °C
Dimensions (H x L x W): 490mm x 385mm x 354mm
Weight: 53 kg

Key Features

Electronic release trip unit for precise protection.
Integrated earth fault protection for enhanced safety.
Modbus RTU communication protocol for easy integration.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Large buildings requiring robust electrical protection
General: Any application needing reliable circuit protection

Standards & Compliance

Complies with AS/NZS 60950 for safety and performance standards.

Environmental Benefits

Energy-efficient design reduces power loss and enhances operational efficiency.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Terasaki TemPower 2 AR ACB Body AR2 65kA 1250A 3P with AGR21CL and Shunt Trip is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable circuit protection.

ARB2123STD-AU-AR-ACB-Body-Datasheet.pdf (ARB2123STD-AU-AR-ACB-Body-Datasheet.pdf, 1,513 Kb) [Download]
