ARB2163NASTD
BRAND: NHP

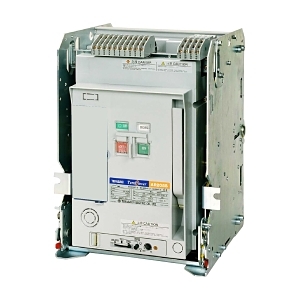

Terasaki TemPower 2 AR ACB Body AR2 65kA 1600A 3P Non Auto


$10,215.00 List price: $13,564.20

Free pick up (over 25 kg)
For delivery quote message

Product Name/Title: Terasaki TemPower 2 AR ACB Body AR2 65kA 1600A 3P Non Auto

Brand: NHP

SKU: ARB2163NASTD

Alternatively Known As: Terasaki ACB, AR ACB Body, Circuit Breaker

Technical Specifications
  • Rated ultimate short circuit breaking capacity: 65 kA at 415 V, 50 Hz
  • Rated insulation voltage: 1000 V
  • Rated frequency: 50-60 Hz
  • Electrical life: 12000 cycles
  • Mechanical life: 15000 cycles
  • Power loss: 350 W
  • Over voltage category: IV
  • Rated impulse withstand voltage: 12 kV
  • Dimensions (H x L x W): 490mm x 385mm x 354mm
  • Weight: 54 kg
Key Features
  • Rated current: 1600 A
  • 65 kA short circuit breaking capacity
  • Non auto-switch trip unit
  • Suitable for isolation
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution in manufacturing facilities
  • Commercial: Large buildings requiring robust circuit protection
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • Designed for high efficiency, reducing energy loss and operational costs.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Terasaki TemPower 2 AR ACB Body AR2 65kA 1600A 3P Non Auto is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.

Non-Returnable & Non-Cancellable

ARB2163NASTD-AU-AR-ACB-Body-Datasheet.pdf (ARB2163NASTD-AU-AR-ACB-Body-Datasheet.pdf, 394 Kb) [Download]
