ARB2203STD
BRAND: NHP

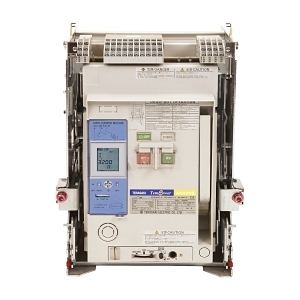

Terasaki TemPower 2 AR ACB Body AR2 65kA 2000A 3P with AGR21CL and Shunt Trip


$22,768.20 List price: $30,233.20

Free pick up (over 25 kg)
For delivery quote message

Product Name/Title: Terasaki TemPower 2 AR ACB Body AR2 65kA 2000A 3P with AGR21CL and Shunt Trip

Brand: NHP

SKU: ARB2203STD

Alternatively Known As: Terasaki ACB, Air Circuit Breaker, TemPower 2 ACB

Technical Specifications
  • Rated ultimate short circuit breaking capacity: 65 kA at 415 V, 50 Hz
  • Rated insulation voltage: 1000 V
  • Rated frequency: 50-60 Hz
  • Integrated communication function: Yes
  • Power loss per pole: 164 W
  • Electrical life: 10,000 cycles
  • Mechanical life: 12,000 cycles
  • Maximum operating temperature: 60 °C
  • Pollution degree: 3
  • Dimensions (H x L x W): 490mm x 385mm x 354mm
  • Weight: 54 kg
Key Features
  • Rated current: 2000 A
  • Short circuit breaking capacity: 65 kA
  • Electronic release trip unit with LSIG curve
  • Integrated earth fault protection
  • Modbus RTU communication protocol
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution systems
  • Commercial: Large buildings and facilities
  • General: Electrical safety and protection in various environments
Standards & Compliance
  • Complies with relevant Australian standards for electrical safety.
Environmental Benefits
  • Designed for high efficiency and reliability in power distribution.
Warranty Information

Standard warranty applies, please check with the manufacturer for specific terms.

Available Now

The Terasaki TemPower 2 AR ACB Body AR2 65kA 2000A 3P with AGR21CL and Shunt Trip is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.

ARB2203STD-AU-AR-ACB-Body-Datasheet.pdf (ARB2203STD-AU-AR-ACB-Body-Datasheet.pdf, 1,513 Kb) [Download]
