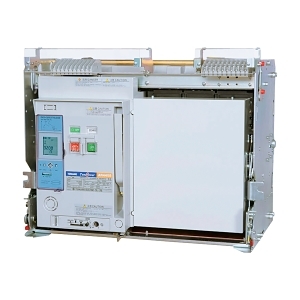

Product Name/Title: Terasaki TemPower 2 AR ACB Body AR4 100kA 4000A 3P with AGR 21CL and Shunt Trip 240V AC
Brand: NHP
SKU: ARB4403STD
Alternatively Known As: Terasaki ACB, Air Circuit Breaker, TemPower 2 ACB
Technical Specifications
- Rated ultimate short circuit breaking capacity: 100 kA at 415 V, 50 Hz
- Rated insulation voltage: 1000 V
- Rated frequency: 50-60 Hz
- Integrated communication function: Yes
- Mechanical life: 8000 cycles
- Electrical life: 3000 cycles
- Over voltage category: IV
- Pollution degree: 3
- Maximum operating temperature: 60 °C
- Dimensions (H x L x W): 490mm x 428mm x 631mm
- Weight: 114 kg
Key Features
- Rated current: 4000 A
- Short circuit breaking capacity: 100 kA
- Electronic release trip unit
- Integrated earth fault protection
- Modbus RTU communication protocol
Professional Installation Requirements
- Professional installation by a qualified electrician is required for optimal safety and compliance.
Applications
- Industrial: Power distribution systems
- Commercial: Large facilities requiring robust circuit protection
Standards & Compliance
- Complies with relevant Australian standards for electrical safety and performance.
Environmental Benefits
- Designed for high efficiency and reliability in power distribution.
Warranty Information
Standard warranty applies, please check with the manufacturer for specific terms.
Available Now
The Terasaki TemPower 2 AR ACB Body AR4 is available now for immediate purchase. Ideal for industrial and commercial power distribution systems.
