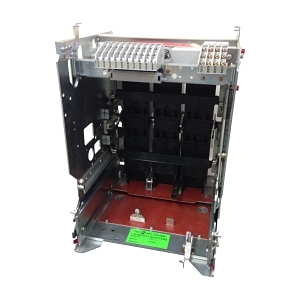

Product Name/Title: Terasaki TemPower 2 AR ACB Carriage AR2 1250A 3P Standard Vert. Horiz. Terminals
Brand: NHP
SKU: ARC2123VHSTD
Alternatively Known As: Terasaki ACB Carriage, AR2 ACB, 1250A Circuit Breaker
Technical Specifications
- Rated Current: 1250 A
- Nominal Voltage: 690 V
- Rated Insulation Voltage: 1000 V
- Rated Impulse Withstand Voltage: 12 kV
- Type of Electrical Connection: Bolt connection
- Number of Auxiliary Contacts: 7
- Orientation: Vertical/horizontal
- Safety Shutters Fitted: Yes
- Control Plug Shutter Fitted: Yes
- Control Terminal Cover Supplied: Yes
- Auto Trip Discharge Lever Fitted: Yes
- Dimensions (H x L x W): 460mm x 385mm x 354mm
- Weight: 28 kg
Key Features
- Rated current of 1250 A with 3 poles.
- Vertical and horizontal terminal orientation.
- Safety shutters and control plug shutter fitted.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Large buildings and infrastructure
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for efficient power management and safety.
Warranty Information
Standard warranty applies.
Available Now
The Terasaki TemPower 2 AR ACB Carriage AR2 1250A 3P is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
Non-Returnable & Non-Cancellable
