ARC2203FFSTD
BRAND: NHP

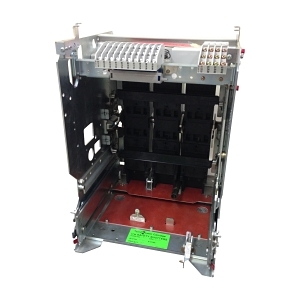

Terasaki TemPower 2 AR ACB Carriage AR2 2000A 3P Standard Front Connect Terminals


$9,784.80 List price: $12,992.90

Free pick up (over 25 kg)
For delivery quote message

Product Name/Title: Terasaki TemPower 2 AR ACB Carriage AR2 2000A 3P Standard Front Connect Terminals

Brand: NHP

SKU: ARC2203FFSTD

Alternatively Known As: Terasaki ACB, AR ACB Carriage, Circuit Breaker Carriage

Technical Specifications
  • Rated Current: 2000 A
  • Number of Poles: 3
  • Nominal Voltage: 690 V
  • Rated Insulation Voltage: 1000 V
  • Rated Impulse Withstand Voltage: 12 kV
  • Electrical Connection: Bolt connection
  • Number of Auxiliary Contacts: 7
  • Safety Shutters: Yes
  • Control Plug Shutter: Yes
  • Control Terminal Cover: Yes
  • Auto Trip Discharge Lever: Yes
  • Dimensions (H x L x W): 580mm x 380mm x 354mm
  • Weight: 33 kg
Key Features
  • Rated current of 2000 A with 3 poles for reliable circuit protection.
  • Front connection orientation for easy installation.
  • Safety shutters and control terminal cover for enhanced safety.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution in manufacturing facilities
  • Commercial: Large buildings requiring robust circuit protection
Standards & Compliance
  • Complies with relevant Australian standards for electrical safety.
Environmental Benefits
  • Designed for energy efficiency and reduced environmental impact.
Warranty Information

Standard warranty as per manufacturer guidelines.

Available Now

The Terasaki TemPower 2 AR ACB Carriage AR2 2000A 3P is available now for immediate purchase. Ideal for industrial and commercial power distribution.

ARC2203FFSTD-AU-AR-ACB-Carriage-Datasheet.pdf (ARC2203FFSTD-AU-AR-ACB-Carriage-Datasheet.pdf, 291 Kb) [Download]
