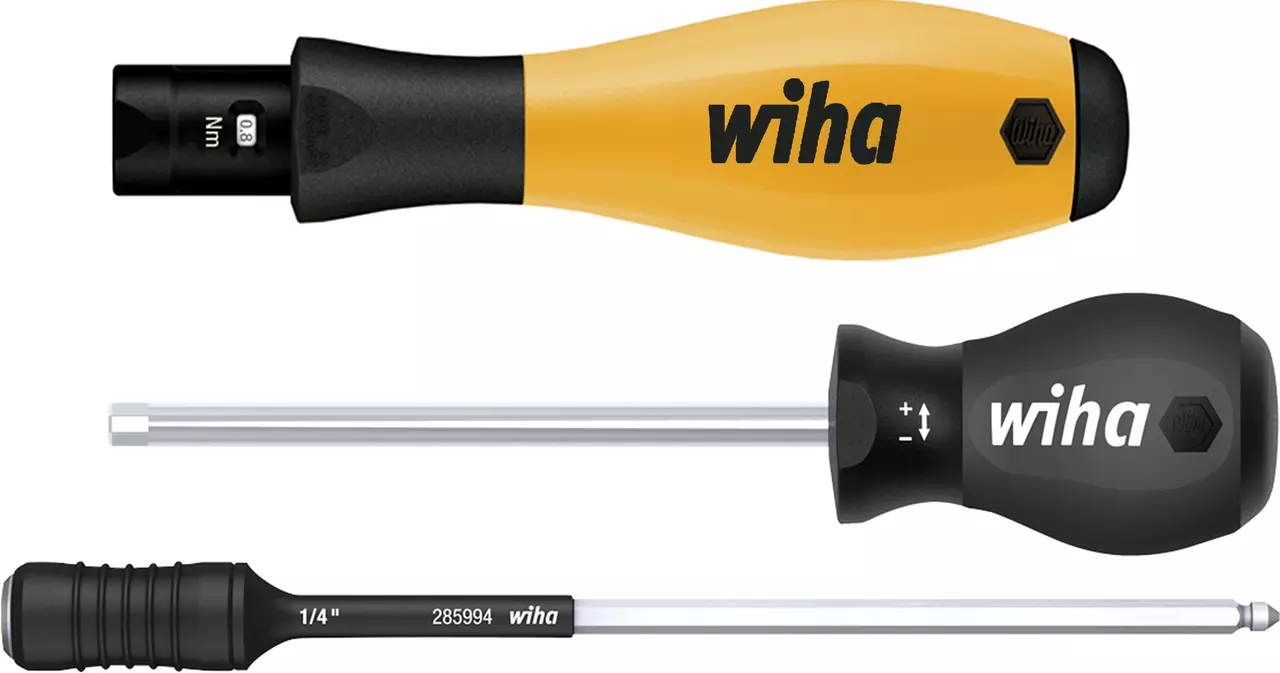

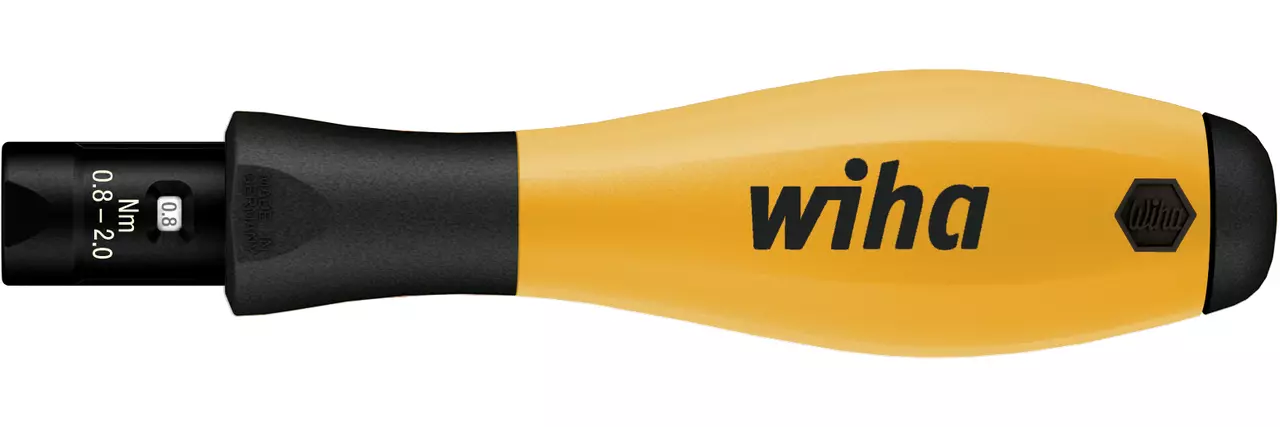

Product Name/Title: Torque screwdriver TorqueVario®-S ESD 0.5 - 2 | 6 % | 4.0 mm
Brand: Wiha
SKU: 26866
Alternatively Known As: ESD Torque Screwdriver, TorqueVario-S Screwdriver, Precision Torque Tool
Technical Specifications
- Torque range: 0.5 - 2 Nm
- Release accuracy: +/- 6%
- Compatible with 4 mm Wiha Torque interchangeable blades (series 2859).
- Includes bit holder for 1/4" bits.
- Includes Torque-Setter setting tool.
- Packaging Dimensions (H x L x W): 35mm x 195mm x 35mm
- Weight: 0.5 kg
Key Features
- Manufactured in line with IEC 61340-5-1 international standard for ESD protection.
- Surface resistance between 10⁶ - 10⁹ ohm safely channels electrostatic energy.
- Integrated numeric scale for variable torque settings.
- Audible and tactile signal emitted upon reaching set torque.
- Release accuracy of +/- 6% compliant with EN ISO 6789.
Professional Installation Requirements
- Professional use recommended in electronic assembly to ensure safety and precision.
Applications

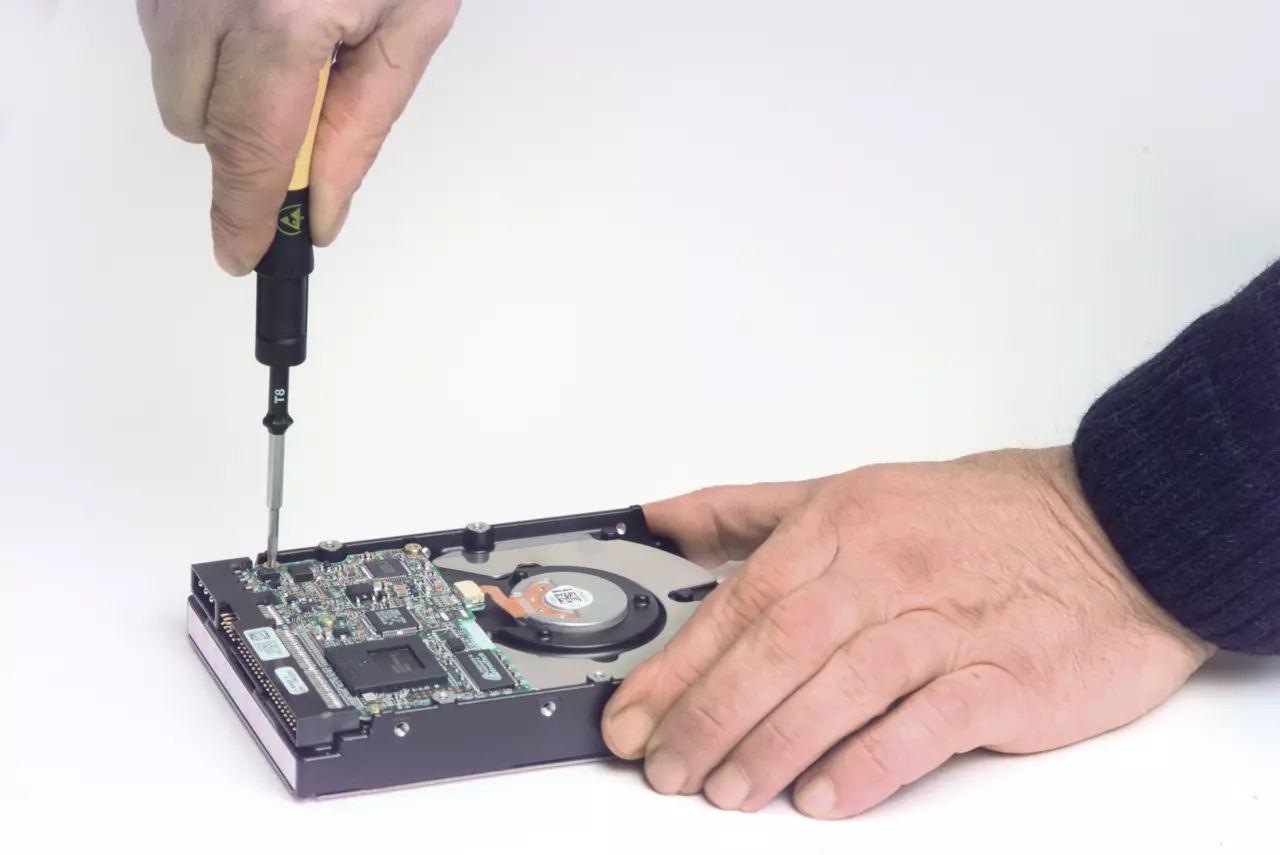

- Electronics: Safe tightening of screws on sensitive electronic components
- Industrial: Used in manufacturing and assembly applications requiring precise torque
Standards & Compliance
- Complies with relevant Australian electrical safety standards for tools.
Environmental Benefits
- Designed to minimize damage and reduce waste associated with electronic component failure.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Wiha TorqueVario®-S ESD Torque Screwdriver is available now for immediate purchase. Ideal for precise electronic assembly applications.
