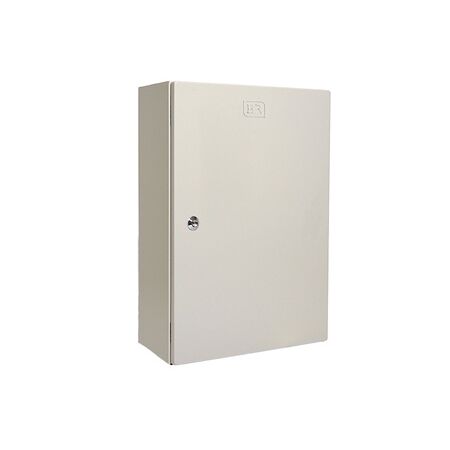

Product Name/Title: Universal NI 1000Hx800Wx300D IP66 Steel RAL7032
Brand: B&R Enclosures
SKU: NI10083
Alternatively Known As: Zinc Coated Steel Enclosure, Industrial Steel Enclosure, IP66 Enclosure
Technical Specifications
- Material: 1.2mm zinc coated steel
- Protection Rating: IP66
- Door Opening: 120º
- Wind Rating: Region D to AS1170.2-2002
- Surface Finish: Powdercoated Pebble Grey RAL7032 or X15 Orange
- Dimensions (H x L x W): 800mm x 300mm x 1000mm
- Weight: 25 kg
Key Features
- IP66 protection rating for dust and water resistance.
- Specially designed gutter system for effective drainage.
- 120º door opening for easy access.
- Door rails fitted to the inside of the door.
- Unique wall-mount feature for quick and easy installation.
- Region D wind rated to AS1170.2-2002 for structural integrity.
- 2mm steel mounting pan powdercoated white.
- Manufactured from 1.2mm zinc coated steel.
- Formed in place polyurethane gasket for sealing.
- Available in Powdercoated Pebble Grey RAL7032 or X15 Orange.
Professional Installation Requirements
- Professional installation is recommended for optimal safety and compliance.
Applications
- Industrial: Housing for electronic controls and instrumentation
- Commercial: Junction terminations, PLCs, motor control systems
- General: Hydraulic, pneumatic, and machine tool controls
Standards & Compliance
- Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Universal NI – Zinc Coated Steel Enclosure is available now for immediate purchase, ideal for industrial applications.
