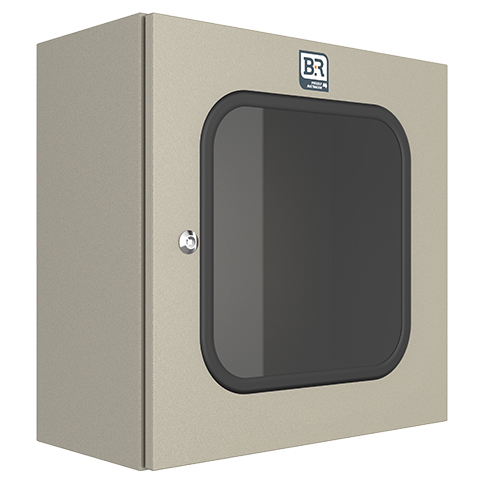

Product Name/Title: Universal NI 800Hx600Wx300D IP66 St 7032 VW Glass
Brand: B&R Enclosures
SKU: NI08063/WG
Alternatively Known As: NI Viewing Window, Universal Viewing Window, ZS Viewing Window
Technical Specifications
- Part Number: NI08063/WG
- Window Height: 275mm
- Window Width: 578mm
- Usable Depth: 300mm
- Dimensions (H x L x W): 600mm x 300mm x 800mm
- Weight: 10 kg
Key Features
- IP66 protection rating
- Specially designed gutter system
- 120º door opening for easy access
- Standard fitted door rails
- Unique wall-mount feature for quick installation
- Region D wind rated to AS1170.2-2002
- 2mm steel mounting pan powdercoated white
- 5.4mm thick glass viewing window
- Manufactured from 1.6mm zinc coated steel
- Formed in place polyurethane gasket
- Powdercoated Pebble Grey RAL7032 or X15 Orange finish
Professional Installation Requirements
- Professional installation is recommended for optimal safety and compliance with standards.
Applications
- Industrial: Housing electronic controls and instrumentation
- Commercial: Junction terminations and motor control systems
- General: Hydraulic, pneumatic, and machine tool controls
Standards & Compliance
- Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
- Region D wind rated to AS1170.2-2002 for structural design actions.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Universal NI – Viewing Window (ZS) is available now for immediate purchase. Ideal for industrial and commercial applications requiring robust housing for electronic controls.
