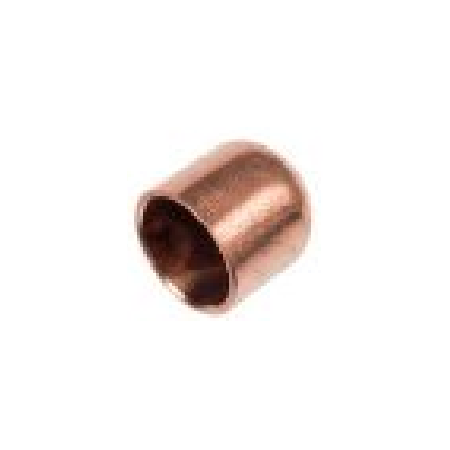

1 1/8Cap XHP High Pressure Copper End Cap | 130 Bar Rating | CuFe2p Alloy | by Aspen Pumps
The 1 1/8Cap XHP high pressure copper end cap is engineered for refrigeration systems, featuring a robust 130 bar pressure rating and made from CuFe2p copper iron alloy for exceptional corrosion resistance. Ideal for HVAC and industrial piping applications, this end cap ensures reliable performance with traditional brazed joining methods, making it a perfect choice for professionals in the field.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1 1/8Cap XHP High Pressure Copper End Cap | 130 Bar Rating | CuFe2p Alloy | by Aspen Pumps
Brand: Aspen Pumps
SKU: 127-129301-118
Alternatively Known As: High Pressure Copper End Cap, SANHA 130 bar Copper Fitting End Cap, CuFe2p End Cap, Refrigeration Copper End Cap
Technical Specifications
- Material: CuFe2p Copper Iron Alloy
- Pressure Rating: 130 bar
- Temperature Rating: Up to 150°C
- Compliance: ASTM B 280, AS5149.2
- Joining Method: Traditional Brazed Joining
- Magnetic Identification for easy verification
- Certified to TüV standards
- Dimensions (H x L x W): 30mm x 30mm x 30mm
- Weight: 0.2 kg
Key Features
- Made from CuFe2p copper iron alloy for high corrosion resistance
- Certified to ASTM B 280 and AS5149.2 standards
- Suitable for use with R744 refrigerant at 130 bar and 150°C
- Traditional brazed joining method with magnetic identification
- Certified to TüV for quality assurance
Professional Installation Requirements
- Installation must be performed by a qualified professional experienced in brazed copper refrigeration fittings to ensure system integrity and compliance.
Applications
- High pressure refrigeration systems using R744 (CO2)
- Industrial piping requiring high corrosion resistance
- HVAC and refrigeration installations with brazed copper fittings
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration systems safety and performance
Environmental Benefits
- Durable copper alloy reduces need for frequent replacements, minimizing waste
- Supports environmentally friendly R744 refrigerant systems
Warranty Information
Warranty coverage as per Aspen Pumps standard terms and conditions.
Available Now
The Aspen Pumps 1 1/8Cap XHP high pressure copper end cap is available for immediate purchase, ideal for high pressure refrigeration and HVAC applications.
