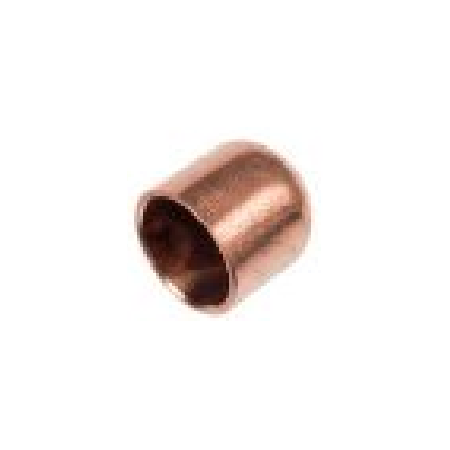

1/2 Cap XHP High Pressure Copper End Cap | ANS C19400 Copper Alloy | TüV Certified | by Aspen Pumps
The 1/2 Cap XHP high pressure copper end cap is designed for refrigeration systems, made from ANS C19400 copper iron alloy for superior corrosion resistance. Certified to TüV standards, it supports R744 refrigerant at pressures up to 130 bar and temperatures of 150°C, making it ideal for industrial and commercial HVAC applications. Ensure reliable performance with traditional brazed joining methods, perfect for professional installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1/2 Cap XHP High Pressure Copper End Cap | ANS C19400 Copper Alloy | TüV Certified | by Aspen Pumps
Brand: Aspen Pumps
SKU: 127-129301-12
Alternatively Known As: High Pressure Copper End Cap, Sanha RefHP End Cap, 1/2 Inch Copper Cap, Refrigeration Copper Fitting Cap
Technical Specifications
- Material: ANS C19400 Copper Iron Alloy (CuFe2p)
- Pressure Rating: 130 bar
- Temperature Rating: Up to 150°C
- Compliance: ASTM B 280, AS5149.2
- Certification: TüV certified
- Joining Method: Traditional brazed joining with magnetic identification
- Dimensions (H x L x W): 20mm x 20mm x 20mm
- Weight: 0.1 kg
Key Features
- Made from ANS C19400 Copper Iron Alloy (CuFe2p) for high corrosion resistance
- Certified to TüV standards ensuring quality and safety
- Suitable for use with R744 refrigerant at 130 bar and 150°C
- Traditional brazed joining method with magnetic identification
- Manufactured in the EU with compliance to ASTM B 280 and AS5149.2
Professional Installation Requirements
- Installation should be performed by a qualified HVAC technician experienced with high pressure refrigeration systems and brazed copper fittings.
Applications
- High pressure refrigeration systems using R744 (CO2)
- Industrial and commercial HVAC systems requiring durable copper fittings
- Systems operating at pressures up to 130 bar and temperatures up to 150°C
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration systems safety and performance
Environmental Benefits
- Supports environmentally friendly R744 (CO2) refrigerant systems which have low global warming potential
- Durable copper alloy construction reduces need for frequent replacements, minimizing waste
Warranty Information
Warranty details available upon request from Aspen Pumps, typically covering manufacturing defects.
Available Now
The Aspen Pumps 1/2 Cap XHP high pressure copper end cap is available for immediate purchase, ideal for high pressure refrigeration and HVAC applications.
