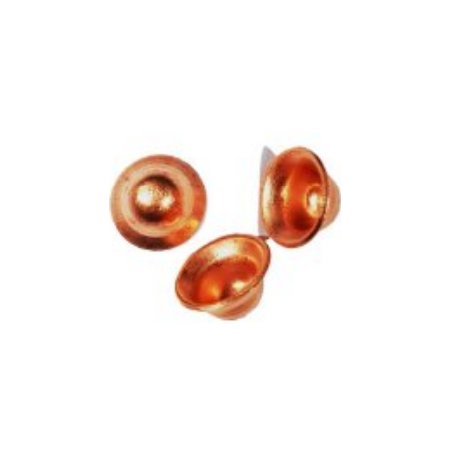

1/2 SAE Copper Bonnet Fitting | High Pressure Rated for CO2 | ISO9001 Certified | by Aspen Pumps
The 1/2 SAE Copper Bonnet Fitting is designed for high-pressure refrigeration systems, rated for CO2 at 60 Bar and compatible with R-410A refrigerants. Manufactured in an ISO9001 accredited facility, it exceeds ISO/AS 5149.2 standards, ensuring reliability and safety in HVAC installations. Ideal for industrial and commercial refrigeration piping, this fitting minimizes refrigerant leakage risk while supporting environmentally friendly refrigerants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1/2 SAE Copper Bonnet Fitting | High Pressure Rated for CO2 | ISO9001 Certified | by Aspen Pumps
Brand: Aspen Pumps
SKU: 108-08
Alternatively Known As: Copper Bonnet Fitting, SKY Copper Fitting, Refrigeration Copper Fitting, High Pressure Copper Fitting
Technical Specifications
- Rated for CO2 at 60 Bar pressure
- Compatible with R-410A refrigerant
- Manufactured to exceed ISO/AS 5149.2 standards
- Produced in ISO9001 accredited facility
- Batch verification and burst tested for quality assurance
- Recommended 15% silver solder for brazing in high-pressure applications
- Dimensions (H x L x W): 20mm x 40mm x 20mm
- Weight: 0.1 kg
Key Features
- Designed, manufactured, and tested to exceed ISO/AS 5149.2 standards
- Suitable for CO2 60 Bar and R-410A refrigerants
- Manufactured in an ISO9001 accredited facility with rigorous QA including batch verification and burst testing
- Marked for R-410A and HP-60 rating for safety
- Designed to reduce stress and fatigue focus points
Professional Installation Requirements
- Installation must be performed by suitably qualified tradespeople following AS HB40 methodology; use 15% silver solder for brazing; ensure mechanical and thermal stress is minimized in pipework design.
Applications
- Refrigeration systems requiring high-pressure copper fittings
- HVAC installations using R-410A and CO2 refrigerants
- Industrial and commercial refrigeration piping
Standards & Compliance
- Complies with AS/NZS 5149.2 Refrigeration systems and heat pumps - Safety and environmental requirements
Environmental Benefits
- Reduces refrigerant leakage risk through superior design and quality control
- Supports use with environmentally friendly refrigerants like CO2 and R-410A
Warranty Information
Warranty coverage subject to proper installation and use as per manufacturer guidelines; typically 1 year against manufacturing defects.
Available Now
The Aspen Pumps 1/2 SAE SKY Copper Bonnet fitting is available for immediate purchase, ideal for refrigeration and HVAC high-pressure copper fitting applications.
