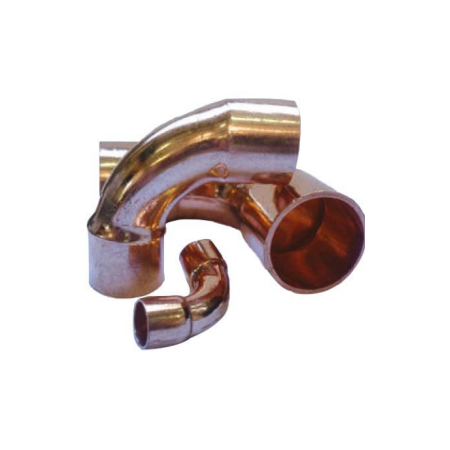

1/4 ID Copper 90 Degree Elbow | R-410A & CO2 Compatible | ISO9001 Certified | by Aspen Pumps
The 1/4 ID Copper 90 Degree Elbow is designed for high-pressure refrigeration systems, compatible with R-410A and CO2 refrigerants. Manufactured in an ISO9001 accredited facility, it exceeds ISO/AS 5149.2 standards, ensuring safety and reliability in HVAC applications. Ideal for professional installations, this elbow fitting minimizes refrigerant leakage and enhances system efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1/4 ID Copper 90 Degree Elbow | R-410A & CO2 Compatible | ISO9001 Certified | by Aspen Pumps
Brand: Aspen Pumps
SKU: 103-0404
Alternatively Known As: Copper 90 Degree Elbow, Refrigeration Copper Fitting, HVAC Copper Elbow, R-410A Copper Elbow
Technical Specifications
- Compatible with CO2 refrigerant at 60 Bar pressure
- Suitable for R-410A refrigerant
- Manufactured and tested to exceed ISO/AS 5149.2 standards
- Produced in ISO9001 accredited facility
- Batch verification burst tested
- Recommended use of 15% silver solder for brazing in high-pressure applications
- Dimensions (H x L x W): 25mm x 30mm x 25mm
- Weight: 0.1 kg
Key Features
- Designed, manufactured, and tested to exceed ISO/AS 5149.2 standards
- Rated for CO2 60 Bar and R-410A refrigerants
- Manufactured in an ISO9001 accredited facility with rigorous QA including batch verification burst testing
- Marked fittings for safety with R-410A and HP-60 ratings
- Designed to remove stress and fatigue focus points
Professional Installation Requirements
- Installation should be performed by suitably qualified tradespeople following AS HB40 methodology; use 15% silver solder for brazing; ensure mechanical and thermal stress is avoided in pipework design.
Applications
- Refrigeration systems requiring high-pressure copper fittings
- Air conditioning installations
- HVAC systems using R-410A and CO2 refrigerants
- Industrial and commercial refrigeration piping
Standards & Compliance
- Complies with AS/NZS 5149.2 Refrigeration systems and heat pumps - Safety and environmental requirements
Environmental Benefits
- Reduces risk of refrigerant leakage, minimizing environmental impact
- Manufactured to high standards to ensure long service life and reduce waste
Warranty Information
Warranty details available upon request; product manufactured under strict quality assurance standards.
Available Now
The Aspen Pumps SKY Copper Elbow 90° 1/4 ID is available for immediate purchase, ideal for refrigeration and HVAC high-pressure copper fitting applications.
