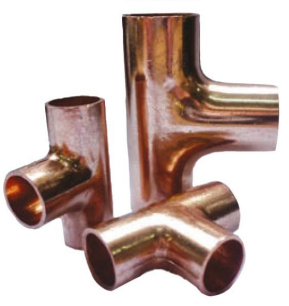

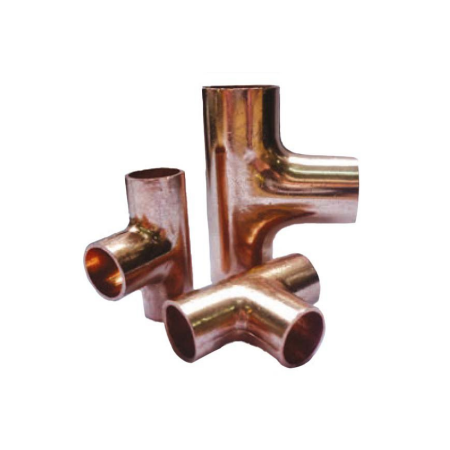

1/4 ID Copper Tee Fitting | R-410A & CO2 Compatible | ISO9001 Certified | by Aspen Pumps
The 1/4 ID Copper Tee Fitting is designed for HVAC and refrigeration systems, compatible with R-410A and CO2 60 Bar refrigerants. Manufactured in an ISO9001 accredited facility, it exceeds ISO/AS 5149.2 standards, ensuring reliability and safety in high-pressure applications. Ideal for professional installations, this fitting minimizes mechanical stress and is marked for easy identification.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1/4 ID Copper Tee Fitting | R-410A & CO2 Compatible | ISO9001 Certified | by Aspen Pumps
Brand: Aspen Pumps
SKU: 106-040404
Alternatively Known As: Copper Tee Fitting, Refrigeration Copper Tee, HVAC Copper Tee, 1/4 Inch Copper Tee
Technical Specifications
- Compatible with CO2 60 Bar and R-410A refrigerants
- Exceeds ISO/AS 5149.2 standards as well as CE and UL certifications
- Manufactured in ISO9001 accredited facility
- Batch verification and burst tested after brazing
- Recommended use of 15% silver solder for brazing
- Designed to minimize mechanical and thermal stress
- Dimensions (H x L x W): 20mm x 20mm x 20mm
- Weight: 0.1 kg
Key Features
- Designed, manufactured, and tested to exceed ISO/AS 5149.2 standards
- Manufactured in an ISO9001 accredited facility with rigorous QA including batch verification and burst testing
- Rated for R-410A and CO2 60 Bar high pressure refrigerants
- Marked fittings for safety and easy identification
- Designed to remove stress and fatigue focus points
- Recommended 15% silver solder for brazing in high pressure applications
- Installation should follow AS HB40 methodology by qualified tradespeople
Professional Installation Requirements
- Installation must be performed by suitably qualified tradespeople following AS HB40 methodology, using recommended brazing techniques and materials.
Applications
- HVAC systems requiring reliable copper fittings
- Refrigeration systems using R-410A and CO2 60 Bar
- High pressure and high temperature piping installations
Standards & Compliance
- Complies with AS/NZS 5149.2 – Refrigerating systems and heat pumps – Safety and environmental requirements
Environmental Benefits
- High durability reduces the need for frequent replacements, minimizing waste
- Manufactured to stringent quality standards to prevent refrigerant leaks, protecting the environment
Warranty Information
Warranty details available upon request from Aspen Pumps; typically includes coverage against manufacturing defects.
Available Now
The Aspen Pumps SKY Copper Tee 1/4 ID x 1/4 ID x 1/4 ID is available for immediate purchase, ideal for HVAC and refrigeration system installations.
