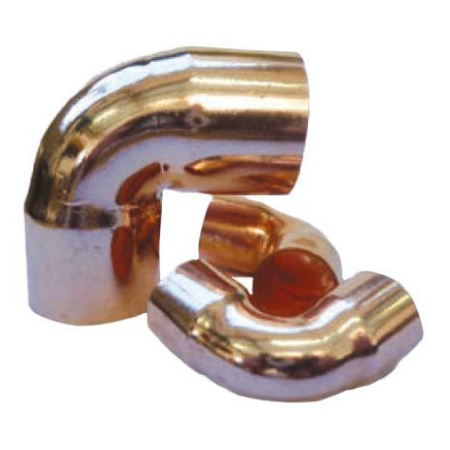

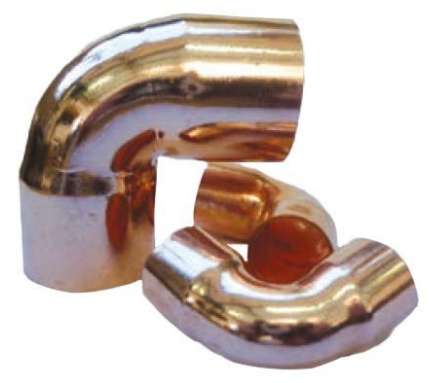

1/4 ID X 1/4 ID Copper Elbow 90 Degree | High-Quality Copper | ISO9001 Certified | by Aspen Pumps
The 1/4 ID X 1/4 ID Copper Elbow 90 Degree is designed for HVAC refrigeration systems, featuring high-quality copper construction and a pressure rating of CO2 60 Bar. Ideal for commercial and industrial refrigeration installations, this fitting exceeds ISO/AS 5149.2 standards, ensuring safety and reliability in high-pressure applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1/4 ID X 1/4 ID Copper Elbow 90 Degree | High-Quality Copper | ISO9001 Certified | by Aspen Pumps
Brand: Aspen Pumps
SKU: 104-0404
Alternatively Known As: Copper Elbow 90 Degree Short Radius, 1/4 Inch Copper Elbow, Refrigeration Copper Fitting, HVAC Copper Elbow
Technical Specifications
- Material: High-quality copper
- Pressure Rating: CO2 60 Bar, R-410A high pressure rated
- Compliance: Exceeds ISO/AS 5149.2 standards
- Manufacturing: ISO9001 accredited facility
- QA: Batch verification burst testing
- Installation: Recommended 15% silver solder brazing
- Stress Reduction: Designed to remove stress and fatigue focus points
- Dimensions (H x L x W): 25mm x 30mm x 25mm
- Weight: 0.1 kg
Key Features
- Designed and manufactured to exceed ISO/AS 5149.2 standards
- Rated for CO2 60 Bar and R-410A refrigerants
- Manufactured in ISO9001 accredited facility with rigorous QA including batch verification burst testing
- Marked fittings for safety with R-410A and HP-60 ratings
- Designed to remove stress and fatigue focus points
- Recommended 15% silver solder for brazing in high pressure applications
Professional Installation Requirements
- Installation should be performed by suitably qualified tradespeople following AS HB40 methodology; use 15% silver solder for brazing in high pressure applications.
Applications
- HVAC refrigeration systems
- High pressure refrigerant piping
- R-410A and CO2 refrigeration installations
- Commercial and industrial refrigeration systems
Standards & Compliance
- AS/NZS 5149.2 – Refrigerating systems and heat pumps – Safety and environmental requirements
Environmental Benefits
- High-quality fittings reduce risk of refrigerant leaks, minimizing environmental impact
- Durable design extends system life, reducing waste and resource consumption
Warranty Information
Warranty details available upon request; product manufactured under strict quality control standards.
Available Now
Available for immediate purchase, ideal for HVAC and refrigeration system installations requiring reliable high-pressure copper fittings.
