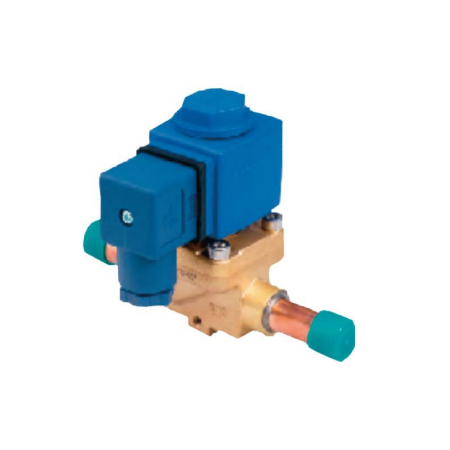

1/4" MF Solenoid Valve | Wide Operating Temperature | High Maximum Pressure | Din Plug Connection | by Aspen Pumps
The 1/4" MF Solenoid Valve is designed for HVAC and refrigeration systems, offering a wide operating temperature range from -40°C to 105°C and a high maximum operating pressure of 31 bar. With a Din plug electrical connection, it ensures easy installation and is suitable for HCFC, HFC, and A2L refrigerants, making it ideal for precise flow control in industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1/4" MF Solenoid Valve | Wide Operating Temperature | High Maximum Pressure | Din Plug Connection | by Aspen Pumps
Brand: Aspen Pumps
SKU: 706-04
Alternatively Known As: 1/4 inch Male Female Solenoid Valve, Flare Solenoid Valve, Refrigerant Solenoid Valve
Technical Specifications
- CV: 0.32
- Liquid Kw R-134A: 5
- Liquid Kw R-407c: 5.4
- Liquid Kw R-404a: 3.8
- Operating temperature range: -40°C to 105°C
- Maximum operating pressure: 31 bar
- Safe Working Pressure (SWP): 43 bar
- Electrical connection: Din plug
- Dimensions (H x L x W): 82mm x 59mm x 25mm
- Weight: 0.3 kg
Key Features
- Suitable for HCFC, HFC, and A2L refrigerants
- Wide operating temperature range from -40°C to 105°C
- High maximum operating pressure up to 31 bar
- Din plug electrical connection for easy installation
- Certified UL, VDE, and CQC for safety and quality
- SWP (Safe Working Pressure) of 43 bar
Professional Installation Requirements
- Installation should be performed by a qualified HVAC technician or licensed electrician to ensure compliance with safety standards and proper system integration.
Applications
- HVAC systems using HCFC, HFC, and A2L refrigerants
- Refrigeration systems requiring precise flow control
- Industrial and commercial cooling applications
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Compatible with low global warming potential refrigerants (A2L)
- Supports energy-efficient HVAC and refrigeration system operation
Warranty Information
Standard manufacturer warranty applies. Please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen 1/4" MF Solenoid Valve is available for immediate purchase, ideal for HVAC and refrigeration system applications requiring reliable refrigerant flow control.
