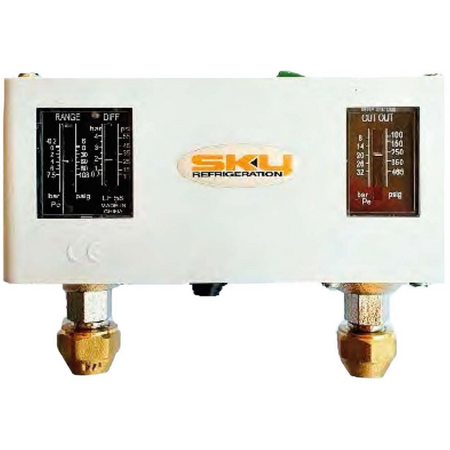

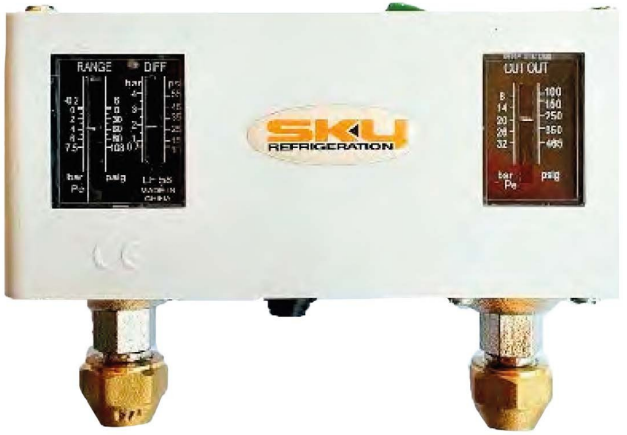

1/4 MSAE Dual Pressure Control Auto Reset | -0.2 to 32 Bar Range | Safe Working Pressure 20 Bar | by Aspen Pumps
The 1/4 MSAE Dual Pressure Control Auto Reset is designed for precise mechanical pressure control in HVAC and refrigeration systems. With a low range of -0.2 to 7.5 bar and a high range of 8 to 32 bar, it ensures optimal performance and pump protection. This reliable pressure controller features auto reset functionality and complies with AS/NZS 4801 standards, making it ideal for industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1/4 MSAE Dual Pressure Control Auto Reset | -0.2 to 32 Bar Range | Safe Working Pressure 20 Bar | by Aspen Pumps
Brand: Aspen Pumps
SKU: 721-DP32
Alternatively Known As: Dual Pressure Switch, Auto Reset Pressure Control, Mechanical Pressure Controller
Technical Specifications
- Low Range Pressure: -0.2 to 7.5 bar
- High Range Pressure: 8 to 32 bar
- Differential Bar: 0.7 to 4 (fixed at 4)
- Safe Working Pressure (SWP): 20 bar
- Connection Type: 1/4 MSAE
- Dimensions (H x L x W): 80mm x 100mm x 60mm
- Weight: 0.3 kg
Key Features
- Dual pressure control with auto reset functionality
- Low range pressure: -0.2 to 7.5 bar
- High range pressure: 8 to 32 bar
- Differential bar adjustable between 0.7 to 4
- Safe working pressure (SWP) up to 20 bar
Professional Installation Requirements
- Installation should be performed by a qualified technician to ensure correct pressure settings and system integration.
Applications
- Mechanical pressure control in HVAC systems
- Pump protection and control
- Industrial and commercial refrigeration systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Helps optimize system efficiency by maintaining proper pressure levels
- Reduces energy waste by preventing system overpressure
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Aspen 1/4 MSAE Dual Pressure Control Auto Reset is available now for immediate purchase. Ideal for mechanical pressure control applications in HVAC and refrigeration systems.
