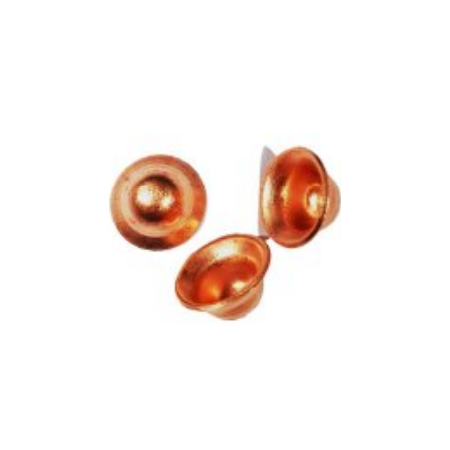

1/4 SAE Copper Bonnet Fitting | Compatible with CO2 & R-410A | ISO9001 Certified | by Aspen Pumps
The 1/4 SAE Copper Bonnet Fitting is designed for high-pressure refrigeration systems, compatible with CO2 and R-410A refrigerants. Manufactured in an ISO9001 accredited facility, it exceeds ISO/AS 5149.2 standards, ensuring safety and reliability. Ideal for HVAC installations, this fitting minimizes refrigerant leakage risk and is perfect for both industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1/4 SAE Copper Bonnet Fitting | Compatible with CO2 & R-410A | ISO9001 Certified | by Aspen Pumps
Brand: Aspen Pumps
SKU: 108-04
Alternatively Known As: Copper Bonnet Fitting, 1/4 SAE Copper Fitting, SKY Copper Fitting, Refrigeration Copper Fitting
Technical Specifications
- Compatible with CO2 refrigerant at 60 Bar pressure
- Suitable for R-410A refrigerant
- Exceeds ISO/AS 5149.2 standards as well as CE and UL certifications
- Manufactured under ISO9001 quality management system
- Passed batch verification burst testing
- Recommended installation with 15% silver solder for high-pressure applications
- Installation should follow AS HB40 methodology by qualified tradespeople
- Dimensions (H x L x W): 20mm x 30mm x 20mm
- Weight: 0.1 kg
Key Features
- Designed, manufactured, and tested to exceed ISO/AS 5149.2 standards
- Rated for CO2 60 Bar and R-410A refrigerants
- Manufactured in an ISO9001 accredited facility with rigorous QA including batch verification burst testing
- Marked for safety with R-410A and HP-60 ratings
- Designed to remove stress and fatigue focus points
Professional Installation Requirements
- Installation must be performed by suitably qualified tradespeople following AS HB40 guidelines, using recommended brazing techniques to ensure safety and performance.
Applications
- Refrigeration systems requiring high-pressure copper fittings
- HVAC installations using R-410A and CO2 refrigerants
- Industrial and commercial refrigeration piping
Standards & Compliance
- Complies with AS/NZS 5149.2 Refrigeration systems and heat pumps - Safety and environmental requirements
Environmental Benefits
- Reduces refrigerant leakage risk, minimizing environmental impact
- Manufactured to high standards to ensure long service life and reduce waste
Warranty Information
Backed by Aspen Pumps' quality assurance and warranty policies; specific warranty details available upon request.
Available Now
The Aspen Pumps 1/4 SAE SKY Copper Bonnet Fitting is available for immediate purchase, ideal for refrigeration and HVAC system installations requiring high-quality copper fittings.
