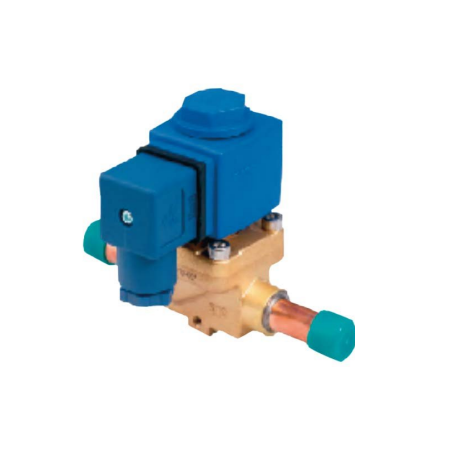

1/4" SOL Solenoid Valve | High Flow | Wide Operating Temperature | Certified for Safety | by Aspen Pumps
The 1/4" SOL Solenoid Valve is designed for HVAC and refrigeration systems, offering high flow capabilities and a wide operating temperature range from -40°C to 105°C. With certifications from UL, VDE, and CQC, this valve ensures reliable refrigerant flow control, making it ideal for industrial and commercial applications that require precision and safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1/4" SOL Solenoid Valve | High Flow | Wide Operating Temperature | Certified for Safety | by Aspen Pumps
Brand: Aspen Pumps
SKU: 705-04
Alternatively Known As: 1/4 inch Solenoid Valve, Refrigerant Solenoid Valve, HVAC Solenoid Valve, High Flow Solenoid Valve
Technical Specifications
- Length: 102 mm
- Height: 82 mm
- CV (Flow Coefficient): 0.32
- Liquid Kw for R-134A: 5
- Liquid Kw for R-407c: 5.4
- Liquid Kw for R-404a: 3.8
- Operating Temperature Range: -40°C to 105°C
- Maximum Operating Pressure: 31 bar
- Safe Working Pressure (SWP): 43 bar
- Electrical Connection: Din plug
- Certifications: UL, VDE, CQC
- Dimensions (H x L x W): 82mm x 102mm x 40mm
- Weight: 0.5 kg
Key Features
- Suitable for HCFC, HFC, and A2L refrigerants
- Wide operating temperature range from -40°C to 105°C
- High maximum operating pressure up to 31 bar
- Din plug electrical connection
- Certified UL, VDE, and CQC for safety and quality
- SWP (Safe Working Pressure) of 43 bar
Professional Installation Requirements
- Installation should be performed by a qualified HVAC technician or licensed electrician to ensure compliance with safety standards and proper system integration.
Applications
- HVAC systems using HCFC, HFC, and A2L refrigerants
- Refrigeration systems requiring precise flow control
- Industrial and commercial refrigeration applications
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Compatible with low global warming potential refrigerants (A2L)
- Supports efficient refrigerant flow control reducing energy consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen 1/4" SOL Solenoid Valve is available for immediate purchase, ideal for HVAC and refrigeration system applications requiring reliable refrigerant flow control.
