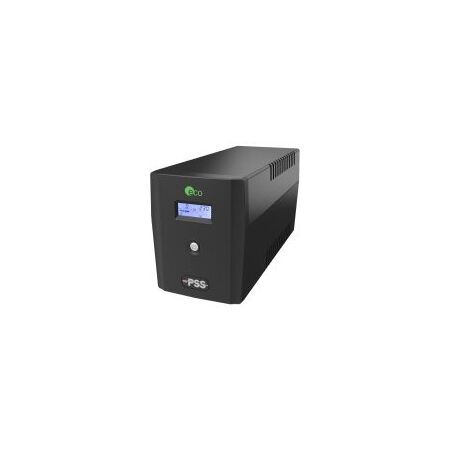

1.4kVA Line-Interactive UPS with LCD ECO

BRAND: CABAC
SKU: ECO1400L
$443.30 List price: $591.10
+ −
30 Days Return Electricians Unlock Trade Access
ECO 1.4kVA line-interactive UPS features LCD display, surge protection and auto-restart. Ideal for CCTV, computers, point of sale, modems and NBN.

Alternatively Known As: Eco 1400VA Battery Backup UPS, Eco Compact Multi-Purpose UPS, PSS ECO1400L UPS

Technical Specifications
  • Model: ECO1400L
  • Capacity: 1400VA / 840W
  • Topology: Line-interactive
  • Display: LCD showing input and output voltage, battery level, load level and UPS status
  • Input Voltage: 230Vac
  • AVR Voltage Range: 162-290Vac
  • Output Voltage Regulation: 230Vac ±10%
  • Battery Waveform: Modified/simulated sine wave
  • Transfer Time: Typical 2-6ms
  • Output Sockets: 3 x Australian AS/NZS 3112 Type I 10A sockets
  • Battery Type: Sealed lead-acid
  • Battery Configuration: 2 x 12V 9Ah
  • Maximum Charge Current: 2A
  • Communications: USB
  • Software: Intelligent monitoring and control software supplied
  • Surge Protection: 125 joules / 4500A
  • Operating Temperature: 0-40°C
  • Operating Humidity: 0-90% RH, non-condensing
  • Audible Noise: Less than 30dB
  • Mounting: Tower
  • Dimensions (H x L x W): 164mm x 355mm x 150mm
  • Weight: 10.6 kg
Key Features
  • LCD status display
  • Boost and buck automatic voltage regulation
  • Cold-start function for battery-powered startup
  • Automatic restart when mains power returns
  • Full-time surge protection
  • Automatic startup diagnostics
  • Intelligent battery management
  • USB communication and monitoring software
  • Short-circuit and low-battery protection
  • Australian output sockets
  • Generator compatible
Professional Installation Requirements
  • No fixed installation is required; the UPS is designed for plug-in tower operation. Battery servicing or replacement should be performed by authorised service personnel in accordance with the manufacturer’s instructions.
Applications
  • CCTV and security systems
  • Desktop computers and small office workstations
  • Point-of-sale equipment
  • Modems, routers and NBN equipment
  • Telecommunications equipment
  • Small networking and office electronics
Standards & Compliance
  • AS/NZS 3112 Type I 10A output sockets
Environmental Benefits
  • Sealed lead-acid batteries can be recovered and recycled through appropriate battery recycling programmes.
  • Automatic voltage regulation can reduce unnecessary battery operation during moderate voltage fluctuations, helping extend battery service life.
  • Intelligent battery management supports longer battery life and may reduce replacement frequency.
  • The UPS provides a reusable power-protection platform for connected electronics, reducing disruption and potential equipment waste caused by power disturbances.
Warranty Information

PSS Distributors’ standard warranty is a 2-year return-to-base warranty from the original purchase date, subject to the manufacturer’s conditions and proof of purchase.

Available Now

Available through ECO/PSS distribution channels and authorised Australian electrical, security and technology distributors; confirm current stock with the supplier.

UPS Sizing Calculator




This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
