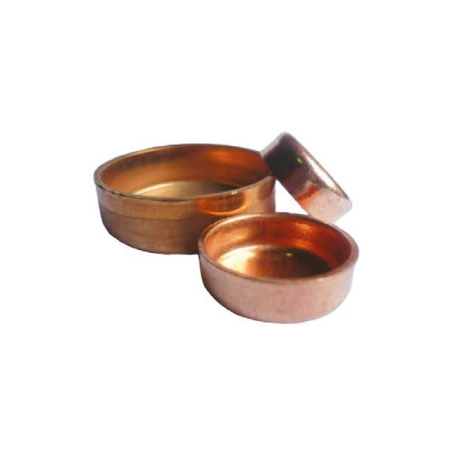

1-5/8 ID Copper End Cap | High Pressure Rated | ISO/AS 5149.2 Compliant | by Aspen Pumps
The 1-5/8 ID Copper End Cap is designed for high-pressure HVAC and refrigeration systems, compatible with CO2 refrigerant at 60 Bar and R-410A. Manufactured in an ISO9001 accredited facility, it exceeds ISO/AS 5149.2 standards, ensuring safety and reliability. Ideal for professional installations, this fitting minimizes mechanical stress and is perfect for industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1-5/8 ID Copper End Cap | High Pressure Rated | ISO/AS 5149.2 Compliant | by Aspen Pumps
Brand: Aspen Pumps
SKU: 110-26
Alternatively Known As: Copper End Cap, Refrigeration Copper Fitting, HVAC Copper Cap, High Pressure Copper Fitting
Technical Specifications
- Compatible with CO2 refrigerant at 60 Bar pressure
- Suitable for R-410A refrigerant
- Manufactured and tested to exceed ISO/AS 5149.2 standards
- Produced in ISO9001 accredited facility
- Passed batch verification and burst testing
- Recommended 15% silver solder for brazing in high-pressure applications
- Designed to minimize mechanical and thermal stress
- Dimensions (H x L x W): 40mm x 40mm x 40mm
- Weight: 0.1 kg
Key Features
- Designed, manufactured, and tested to exceed ISO/AS 5149.2 standards
- Rated for CO2 60 Bar and R-410A refrigerants
- Manufactured in an ISO9001 accredited facility with rigorous QA including batch verification and burst testing
- Marked fittings for safety with R-410A and HP-60 ratings
- Designed to reduce stress and fatigue focus points
Professional Installation Requirements
- Installation must be performed by suitably qualified tradespeople following AS HB40 methodology; use 15% silver solder for brazing in high-pressure systems.
Applications
- HVAC systems requiring high-pressure copper fittings
- Refrigeration systems using R-410A and CO2 refrigerants
- Industrial and commercial refrigeration and air conditioning installations
Standards & Compliance
- Complies with AS/NZS ISO 5149.2 for refrigeration safety and performance
Environmental Benefits
- Reduces risk of refrigerant leakage, minimizing environmental impact
- Manufactured to high standards to ensure long service life and reduce waste
Warranty Information
Warranty details available upon request; product manufactured under strict quality assurance standards.
Available Now
Available for immediate purchase, ideal for HVAC and refrigeration system installations requiring high-pressure copper fittings.
